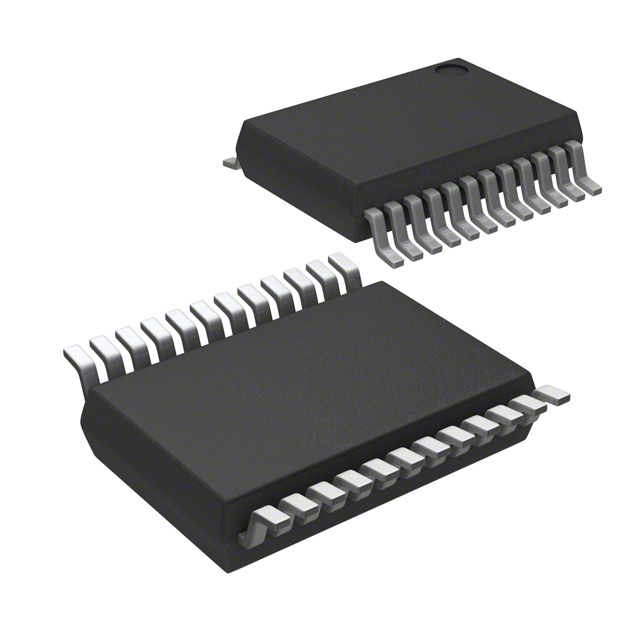

R5F213G1DNSP#U0

Microcontrollers Overview

The R5F213G1DNSP#U0 is a 16-bit microcontroller belonging to the R8C/3GC group, manufactured by Renesas Electronics Corporation. It integrates an R8C CPU core with 32 KB of flash memory and 1 KB of RAM. The device operates within a supply voltage range of 1.8 V to 5.5 V and supports clock frequencies up to 20 MHz. It features a 20-pin LSSOP package and includes integrated peripherals such as an 8-channel 10-bit ADC, I2C, LIN bus, UART, and PWM modules.

Microcontrollers Feature Summary

• Integrates an efficient 16-bit R8C CPU core with hardware multiplier for high-speed processing
• Includes data flash with background operation capability for non-volatile storage updates
• Supports low power consumption through multiple operating modes and voltage detection
• Provides diverse serial communication interfaces including I2C, LIN, and UART

Microcontrollers Applications

• Electronic household appliances
• Office equipment
• Audio equipment
• Consumer electronics

Microcontrollers Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and moisture sensitivity level prior to assembly. Check for obsolescence notices or product change notifications that may affect long-term availability. Ensure packaging specifications match design requirements for surface mount technology processes.

Microcontrollers Selection Notes

Select this component for designs requiring a balance of processing power and peripheral integration in a compact form factor. Consider the 1.8 V to 5.5 V operating range for flexible power supply options. Evaluate the 20 MHz maximum speed against application timing requirements. Verify pin compatibility if replacing existing R8C series devices in legacy designs.

Microcontrollers Part Context

This microcontroller is part of the broader R8C family, which targets cost-sensitive embedded applications. The R8C/3GC subgroup specifically emphasizes efficiency and low power consumption. It serves as a solution for systems needing reliable control capabilities without the complexity of higher-end processors.

Microcontrollers Replacement Considerations

Consult official Renesas documentation for cross-reference recommendations. The RL78/F12, F13, F14, and F15 groups are suggested for new designs instead of discontinued R8C variants.
