R5F526TFADND#50

$3.26

Description：RX26TROM512RAM64QFN64PGA,
Series：RX26T
Mfr：Renesas Electronics Corporation
Package：Tape & Reel (TR)
Core Processor：RXv3

SKU:fe65b8632a06 Category: Microcontrollers Brand: Renesas Electronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

R5F526TFADND#50 is listed in the Microcontrollers range at ChipApex. The manufacturer field lists Renesas Electronics Corporation. Its product description is RX26TROM512RAM64QFN64PGA,. Review the specifications below when checking this part for your BOM.

Microcontrollers specifications for R5F526TFADND#50

Description：RX26TROM512RAM64QFN64PGA,
Series：RX26T
Mfr：Renesas Electronics Corporation
Package：Tape & Reel (TR)
Core Processor：RXv3
Core Size：32-Bit
Speed：120MHz
Connectivity：CANbus, I2C, SCI, SPI, UART/USART
Peripherals：DMA, LVD, POR, PWM, WDT
Number of I/O：49
Program Memory Size：512KB (512K x 8)
Program Memory Type：FLASH
EEPROM Size：16K x 8
RAM Size：64K x 8
Voltage - Supply (Vcc/Vdd)：2.7V ~ 5.5V
Data Converters：A/D 15x12b; D/A 2x12b
Oscillator Type：Internal
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount

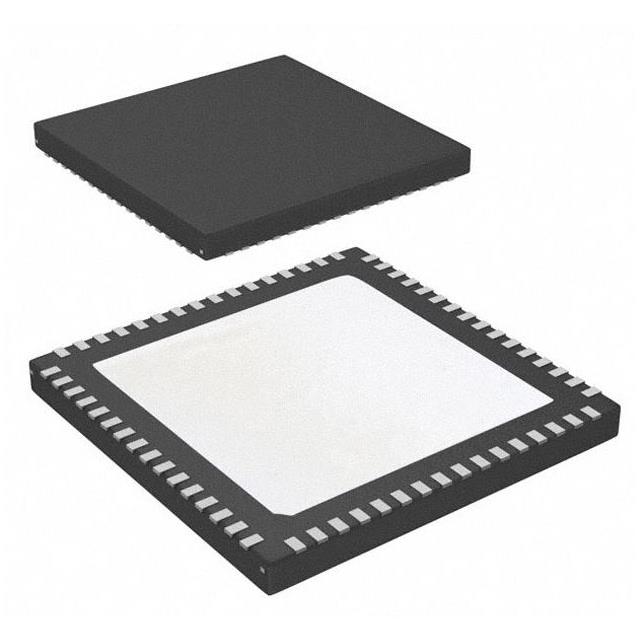

Supplier Device Package：64-HWQFN (9x9)
Package / Case：64-WFQFN Exposed Pad
Grade：-
Qualification：-

Microcontrollers datasheet and documents for R5F526TFADND#50

R5F526TFADND#50

Microcontrollers Overview

The R5F526TFADND#50 is a 32-bit microcontroller from the Renesas RX26T series, built on the RXv3 core. It features 512KB of flash memory and 64KB of RAM. The device operates at a maximum clock frequency of 120MHz and supports a supply voltage range of 2.7V to 5.5V. It includes an internal oscillator and offers interfaces such as CANbus, I2C, SCI, SPI, and UART/USART. The unit is housed in a 64-LQFP package and functions within a temperature range of -40°C to 85°C.

Microcontrollers Feature Summary

Supports dual motor control via FOC and PFC on a single chip
Includes integrated analog-to-digital and digital-to-analog converters
Features low-voltage detection and power-on reset peripherals

Microcontrollers Applications

Dual motor control systems
Digital power conversion applications
Industrial sensor devices

Microcontrollers Procurement Notes

Verify the exact suffix against official Renesas documentation to confirm pin compatibility and electrical specifications. Confirm moisture sensitivity levels and reflow soldering profiles prior to assembly. Ensure the source provides valid traceability for automotive or industrial grade requirements.

Microcontrollers Selection Notes

Select this component when high-performance vector control is required alongside power management functions. Compare memory sizes and interface counts against alternative RX26T variants to ensure optimal cost and feature alignment for the specific design constraints.

Microcontrollers Part Context

This part belongs to the RX26T group, designed for applications requiring both processing power and analog capabilities. The series emphasizes energy efficiency and integration, targeting complex control loops in motor drives and power supplies without external signal conditioning components.
