R5F563TBEDFP#V0

Microcontrollers Overview

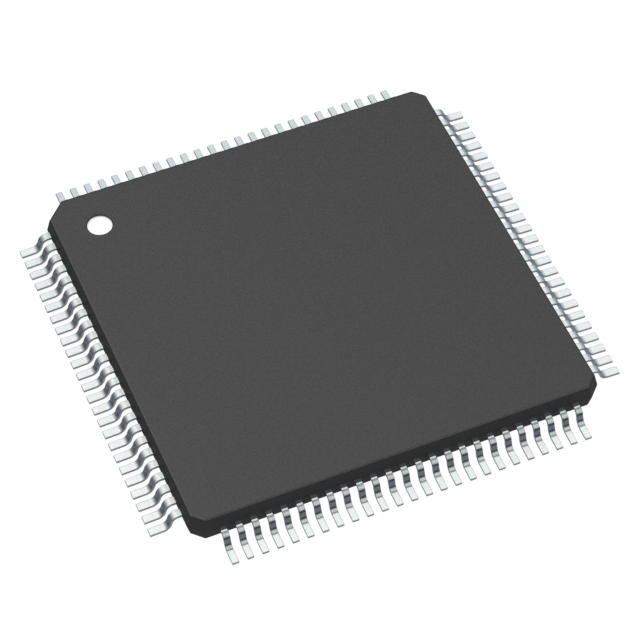

The R5F563TBEDFP#V0 is a 32-bit microcontroller from the Renesas RX63T series, featuring an RX core with a maximum clock frequency of 100 MHz. It integrates 512 kB of ROM program memory and 48 kB of SRAM data memory within an LFQFP-100 package. The device supports a supply voltage range of 2.7 V to 5.5 V and operates between -40°C and +85°C. Key peripherals include multiple communication interfaces such as CAN, I2C, SCI, and USB, alongside 10-bit and 12-bit ADCs with up to 20 channels.

Microcontrollers Feature Summary

• Integrates high-speed 100 MHz processing capability for efficient control tasks
• Provides extensive connectivity through integrated CAN, Ethernet, and USB 2.0 interfaces
• Includes flexible analog conversion capabilities with selectable resolution options

Microcontrollers Applications

• Industrial automation controllers requiring robust communication protocols
• Automotive electronic control units utilizing CAN bus networks
• Consumer appliances with USB connectivity requirements

Microcontrollers Procurement Notes

Verify the specific suffix and revision level against official Renesas documentation to ensure compatibility with existing firmware and hardware designs. Confirm that the LFQFP-100 package dimensions match the target PCB footprint. Check current lifecycle status as some variants may be marked as not recommended for new designs.

Microcontrollers Selection Notes

Select this component when a balance of high memory capacity and diverse interface options is required in a compact form factor. Consider the 5.5 V maximum operating voltage if interfacing directly with higher voltage logic levels without additional level shifting. Evaluate pin count availability against system I/O requirements before finalizing the design.

Microcontrollers Part Context

This part belongs to the RX63T family, designed for applications demanding high performance and rich peripheral sets. It shares architectural similarities with other RX63T variants but differs in memory size and package configuration. The series is widely used in industrial and automotive sectors due to its reliability and comprehensive feature set.

Microcontrollers Replacement Considerations

Direct substitutes within the same family include R5F563TEADFP#V0 and R5F563TEDDFP#V0, which share similar memory configurations and pinouts. Verify electrical specifications and software compatibility before swapping components.
