R5F565N7BGLJ#20

Microcontrollers Overview

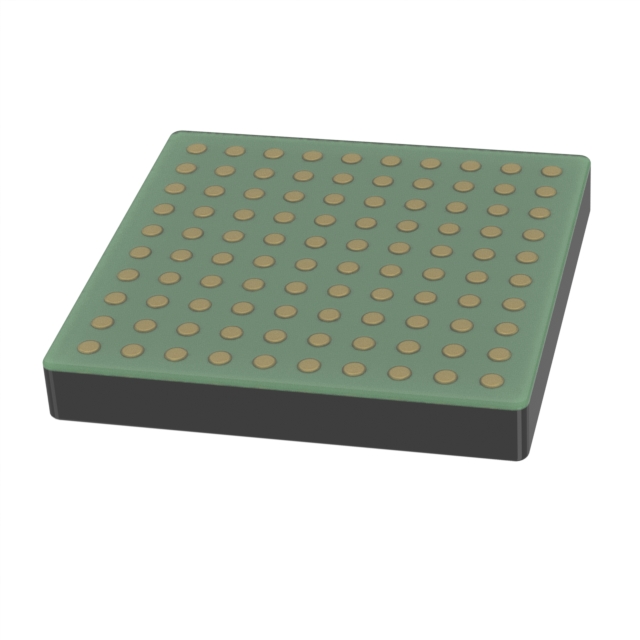

The R5F565N7BGLJ#20 is a 32-bit microcontroller from the Renesas RX65N series, utilizing the RXv2 core architecture. It operates at a maximum clock frequency of 120 MHz and features 768 KB of flash memory alongside 256 KB of RAM. The device is housed in a 100-TFLGA (7x7) package and supports a supply voltage range of 2.7 V to 3.6 V. It includes integrated peripherals such as CANbus, Ethernet, USB, and multiple communication interfaces.

Microcontrollers Feature Summary

• Integrates high-performance RXv2 32-bit core for efficient processing
• Supports diverse connectivity via built-in Ethernet, USB, and CANbus modules
• Provides extensive I/O capabilities with 78 accessible pins
• Includes advanced data converters with 22-channel 12-bit ADC and 1-channel 12-bit DAC

Microcontrollers Applications

• Industrial automation controllers requiring robust communication protocols
• Smart metering systems utilizing Ethernet and USB connectivity
• Automotive instrumentation panels with CANbus integration
• Medical devices needing precise analog signal acquisition

Microcontrollers Procurement Notes

Verify the specific suffix #20 against official Renesas documentation to confirm manufacturing date code and compliance status. Ensure compatibility with existing PCB footprints for the 100-TFLGA package. Confirm moisture sensitivity level requirements during storage and handling procedures prior to assembly.

Microcontrollers Selection Notes

Select this component when design requirements demand high-speed processing combined with native Ethernet and USB support within a compact form factor. Consider the 120 MHz operational speed and memory configuration for applications involving complex protocol stacks or real-time data acquisition needs.

Microcontrollers Part Context

This part belongs to the RX65N group, designed for high-performance embedded control applications. It shares architectural similarities with other RXv2-based MCUs but offers specific memory and pin configurations tailored for connectivity-intensive environments.

Microcontrollers Replacement Considerations

Consult the RX Family Part Number Guide for verified substitutes. Cross-reference pinouts and electrical specifications with models like R5F565N7EGLJ#20 before implementation.
