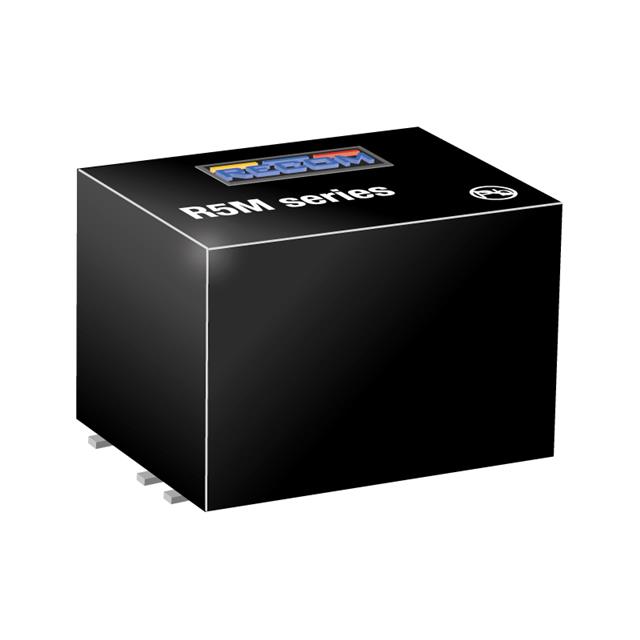

R5M-4815S/SMD

R5M-4815S/SMD is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is 5W DC/DC-CONVERTER 'ECONOLINE' S. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for R5M-4815S/SMD

• Description：5W DC/DC-CONVERTER 'ECONOLINE' S
• Series：R5M (5W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：333mA
• Power (Watts)：4.995 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：86%
• Mounting Type：Surface Mount
• Package / Case：7-SMD Module, 6 Leads
• Size / Dimension：0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for R5M-4815S/SMD
