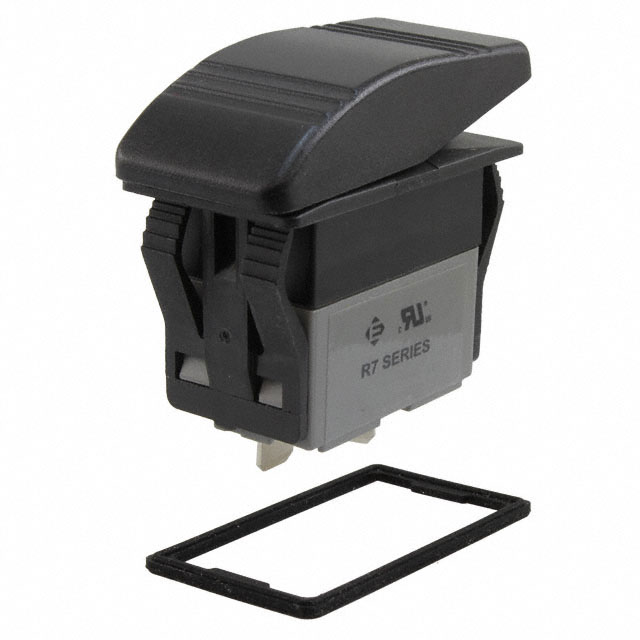

R711FC1-SXXXNBBNNX

R711FC1-SXXXNBBNNX is listed in the Rocker Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH ROCKER SPST 20A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for R711FC1-SXXXNBBNNX

• Description：SWITCH ROCKER SPST 20A 125V
• Series：R7
• Mfr：E-Switch
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：20A (AC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：-
• Actuator Type：Convex (Reverse V)
• Color - Actuator/Cap：Black
• Actuator Marking：No Marking
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Panel Cutout Dimensions：Rectangular - 37.00mm x 21.10mm
• Operating Temperature：0°C ~ 55°C
• Approval Agency：cULus

Rocker Switches datasheet and documents for R711FC1-SXXXNBBNNX
