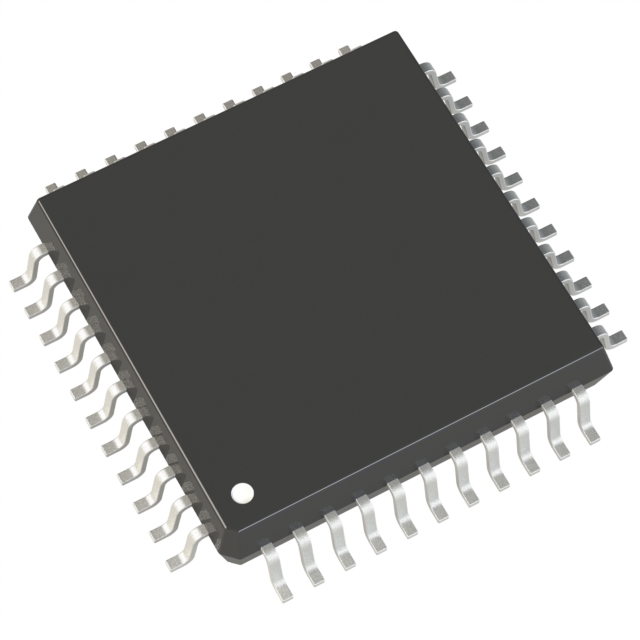

R7F101GFE3CFP#UA1

$1.26

Description：16-BIT GENERAL MCU RL78/G24 64K
Series：RL78/G24
Mfr：Renesas Electronics Corporation
Package：Tray
Core Processor：RL78

SKU:79aa291ee612 Category: Microcontrollers Brand: Renesas Electronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

R7F101GFE3CFP#UA1 is listed in the Microcontrollers range at ChipApex. The manufacturer field lists Renesas Electronics Corporation. Its product description is 16-BIT GENERAL MCU RL78/G24 64K. Review the specifications below when checking this part for your BOM.

Microcontrollers specifications for R7F101GFE3CFP#UA1

Description：16-BIT GENERAL MCU RL78/G24 64K
Series：RL78/G24
Mfr：Renesas Electronics Corporation
Package：Tray
Core Processor：RL78
Core Size：16-Bit
Speed：48MHz
Connectivity：CSI, I2C, LINbus, SPI, UART/USART
Peripherals：LVD, POR, PWM, WDT
Number of I/O：37
Program Memory Size：64KB (64K x 8)
Program Memory Type：FLASH
EEPROM Size：4K x 8
RAM Size：12K x 8
Voltage - Supply (Vcc/Vdd)：1.6V ~ 5.5V
Data Converters：A/D 21x8/10b/12b; D/A 3x8/10b
Oscillator Type：Internal
Operating Temperature：-40°C ~ 105°C (TA)
Mounting Type：Surface Mount
Supplier Device Package：44-LQFP (10x10)
Package / Case：44-LQFP
Grade：-
Qualification：-

Microcontrollers datasheet and documents for R7F101GFE3CFP#UA1

R7F101GFE3CFP#UA1

Microcontrollers Overview

The R7F101GFE3CFP#UA1 is a 16-bit microcontroller from the Renesas RL78/G24 series. It features an internal oscillator and operates at speeds up to 48MHz. The device includes 64KB of flash memory, 12KB of RAM, and 4KB of EEPROM. It supports a supply voltage range of 1.6V to 5.5V and functions within temperatures of -40°C to 105°C. Connectivity options include CSI, I2C, LINbus, SPI, and UART/USART interfaces. The unit is housed in a 44-LQFP package with 27 I/O lines.

Microcontrollers Feature Summary

Integrated 16-bit RL78 core processor
Supports multiple communication protocols including LINbus and SPI
Includes built-in analog-to-digital and digital-to-analog converters

Microcontrollers Applications

Automotive body electronics control modules
Industrial sensor interface units
General-purpose embedded control systems

Microcontrollers Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm the specific suffix matches project requirements as variations exist within the family. Check for current availability status as production states may change. Ensure compliance with RoHS3 specifications for environmental regulations.

Microcontrollers Selection Notes

Select this model when a 16-bit architecture with integrated LINbus support is required. Consider the 48MHz processing speed and available peripheral count for system design. Evaluate the 44-pin LQFP package constraints against board layout needs. Compare power consumption characteristics against other RL78 variants if battery operation is critical.

Microcontrollers Part Context

This component belongs to the RL78/G24 family, designed for high-performance general MCU applications. It combines standard RL78 efficiency with enhanced connectivity features. The series targets cost-sensitive markets requiring robust automotive-grade reliability and extensive peripheral integration for complex control tasks.
