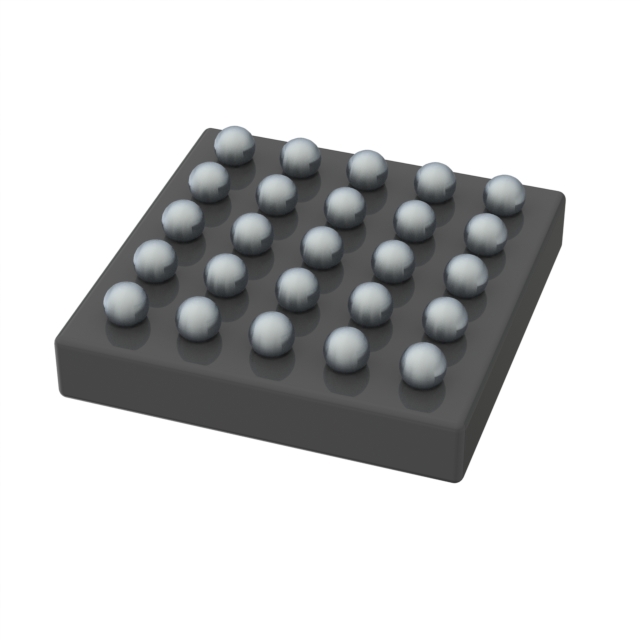

R7F102GCC3CLA#AC0

Microcontrollers Overview

The R7F102GCC3CLA#AC0 is a 16-bit RL78/G22 microcontroller from Renesas Electronics. It features an internal oscillator and supports a supply voltage range of 1.6V to 5.5V. The device includes an 8-channel, 8/10-bit A/D converter. It operates within a temperature range of -40°C to 105°C (TA).

Microcontrollers Feature Summary

• Supports a wide operating voltage range from 1.6V to 5.5V.
• Integrates an 8-channel analog-to-digital converter with selectable resolution.
• Utilizes an internal oscillator for clock generation.

Microcontrollers Applications

• General-purpose embedded control systems
• Low-voltage battery-powered applications
• Industrial sensor interfaces

Microcontrollers Procurement Notes

Verify the specific suffix AC0 against official Renesas documentation to confirm package type and temperature rating. Ensure compatibility with target PCB footprint and thermal requirements before procurement.

Microcontrollers Selection Notes

Select this component when a 16-bit architecture with integrated ADC channels is required. Consider the 1.6V minimum supply for low-power designs and verify that the 105°C maximum junction temperature meets environmental constraints.

Microcontrollers Part Context

This part belongs to the RL78/G22 family of 16-bit general-purpose microcontrollers. The series emphasizes low power consumption and enhanced peripheral integration for cost-sensitive embedded applications requiring reliable processing capabilities.

Microcontrollers Replacement Considerations

Consult official substitution lists for compatible RL78/G22 variants. Verify pinout and memory configuration matches before replacing.
