R7S910001CFP#AA0

Microcontrollers Overview

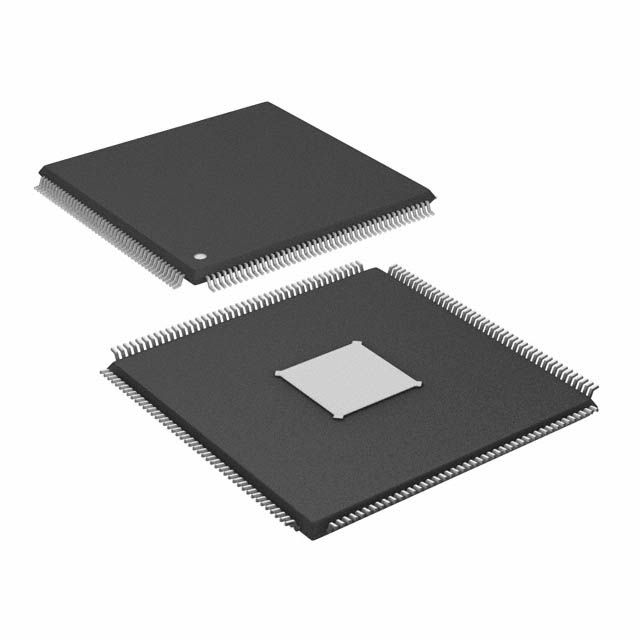

The R7S910001CFP#AA0 is a 32-bit microcontroller from the Renesas RZ/T1 series, featuring an ARM Cortex-R4F core operating at 450MHz. It utilizes a 176-HLQFP (20x20) package with 176 leads and provides 97 I/O ports. Designed as a ROMless device, it supports external memory interfaces for flexible code storage. The unit includes DMA capabilities and offers optional Ethernet connectivity via two 10/100M channels.

Microcontrollers Feature Summary

• High-performance real-time processing with ARM Cortex-R4F core
• Flexible memory architecture supporting external ROM/Flash
• Integrated Direct Memory Access for efficient data handling
• Optional dual-channel Ethernet interface support

Microcontrollers Applications

• Industrial automation control systems
• Robotics motion control applications
• Safety-critical embedded devices
• Real-time data acquisition modules

Microcontrollers Procurement Notes

Verify component authenticity through authorized Renesas distributors or certified partners. Confirm that the specific part number matches project requirements regarding the ROMless configuration and package type. Ensure compliance with RoHS standards and check for any recent Product Change Notices affecting labeling or manufacturing details before finalizing procurement orders.

Microcontrollers Selection Notes

Select this component when high-speed deterministic performance is required for safety-related tasks. The Cortex-R4F core suits applications needing robust real-time response. Consider the ROMless design if external memory flexibility is preferred over internal flash. Evaluate the 176-pin footprint against PCB space constraints and verify thermal management needs for the HLQFP package.

Microcontrollers Part Context

This microcontroller belongs to the RZ/T1 family, optimized for industrial and automotive safety applications. It complements other Renesas solutions by providing high-frequency processing with functional safety features. The series targets complex control loops requiring precise timing and reliable operation in harsh environments.

Microcontrollers Replacement Considerations

Consult official Renesas documentation for direct substitutes within the RZ/T1 series. Verify pin compatibility and software migration paths when considering alternative models. No public substitute part numbers are confirmed in the provided source material.
