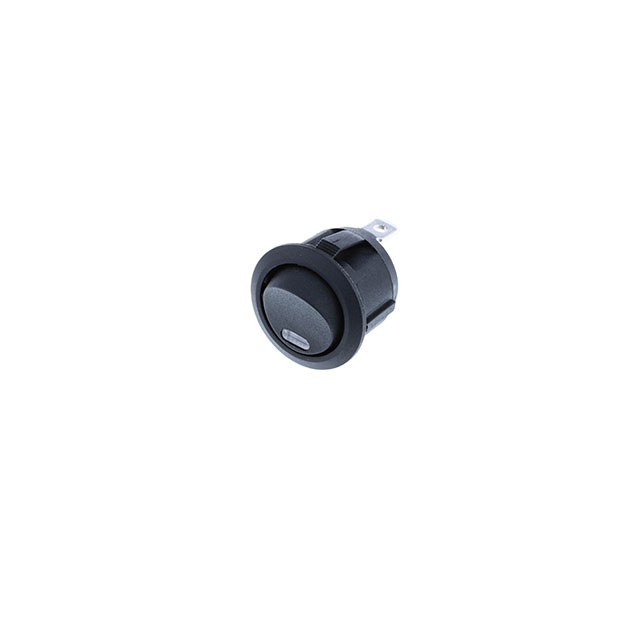

RA3-1A-DC-2-RL

RA3-1A-DC-2-RL is listed in the Rocker Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is SWITCH ROCKER SPST 20A 14V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for RA3-1A-DC-2-RL

• Description：SWITCH ROCKER SPST 20A 14V
• Series：RA3
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：20A (DC)
• Voltage Rating - AC：-
• Voltage Rating - DC：14 V
• Actuator Type：Round - Illuminated
• Color - Actuator/Cap：Black
• Actuator Marking：No Marking
• Illumination Type, Color：LED, Red
• Illumination Voltage (Nominal)：14 VDC
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：-
• Features：-
• Panel Cutout Dimensions：Circular - 20.20mm Dia
• Operating Temperature：-25°C ~ 85°C
• Approval Agency：-

Rocker Switches datasheet and documents for RA3-1A-DC-2-RL
