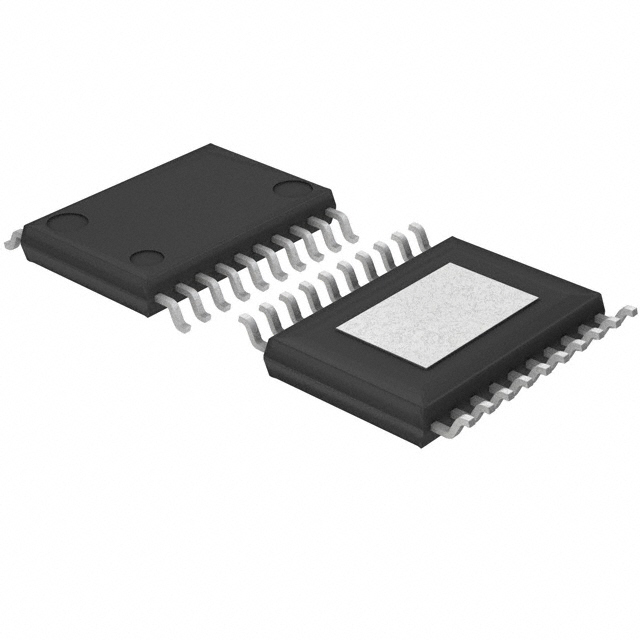

RAA230233GSB#HA0

Voltage Regulators - DC DC Switching Regulators Overview

The RAA230233GSB#HA0 is a dual-output synchronous step-down DC/DC converter manufactured by Renesas Electronics Corporation. It operates with an input voltage range of 4.5V to 16V and provides two adjustable output channels, each capable of delivering up to 3A. The output voltage for both channels is adjustable from 0.8V to 6V. This power management integrated circuit is designed for efficient voltage regulation in compact electronic systems requiring multiple stable power rails.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Dual independent synchronous buck converters providing separate regulated outputs
• Adjustable output voltage range supporting diverse logic and peripheral requirements
• High current capability per channel for demanding load applications

Voltage Regulators - DC DC Switching Regulators Applications

• Microcontroller unit (MCU) core and I/O power supply systems
• Portable consumer electronics requiring multi-voltage regulation
• Industrial control modules with mixed-signal power needs

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix and package variant against the latest official datasheet before procurement. Confirm that the component status aligns with project lifecycle requirements, as availability may vary. Ensure compatibility with existing bill of materials regarding pinout and thermal specifications.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a dual-channel solution is required to save board space compared to discrete regulators. Evaluate the total output current demand against the 3A limit per channel. Consider the input voltage range to ensure it matches the system's primary power source without exceeding maximum ratings.

Voltage Regulators - DC DC Switching Regulators Part Context

This device belongs to the RAA230xx series of power management ICs from Renesas. These components are engineered to provide efficient, compact power solutions for embedded systems. The series typically integrates protection features and high-efficiency switching topologies suitable for modern low-power and medium-power applications.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Consult official cross-reference lists for direct replacements. Verify electrical parameters such as input voltage range, output current capacity, and package dimensions to ensure functional equivalence.
