RAA230409GFT#AA0

Overview

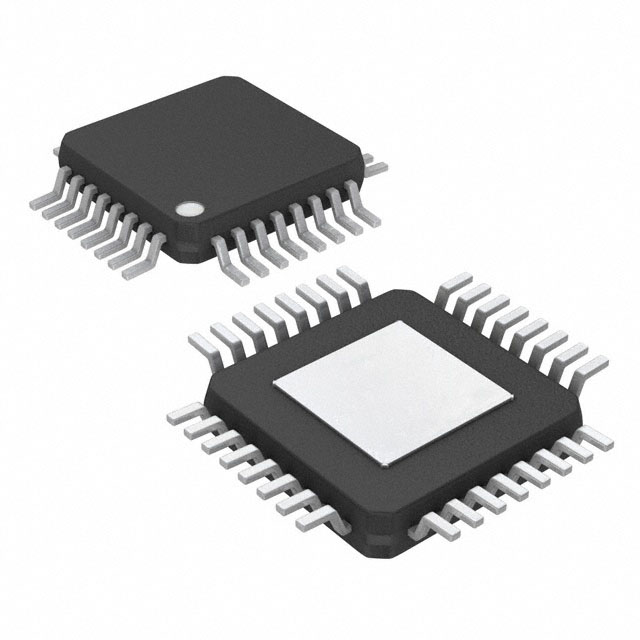

The RAA230409GFT#AA0 is a quad-channel power management IC from Renesas Electronics, integrating three synchronous buck converters and one low-dropout regulator. It operates within an input voltage range of 2.5V to 5.5V and supports switching frequencies between 1.3MHz and 2.2MHz. The device provides four distinct output channels with specific current capabilities: Output 1 supports up to 500mA, Output 2 up to 100mA, and Output 3 up to 1.5A. All outputs offer adjustable voltage ranges from 0.9V to 4.95V. Packaged in a 32-TQFP (7x7mm) format with exposed pad, it is designed for surface-mount installation and functions reliably across an industrial temperature range of -40°C to +85°C.

Feature Summary

• Integrates three synchronous step-down DC/DC converters and one linear LDO regulator into a single compact package
• Supports flexible multi-rail power architectures with independent adjustable voltage outputs for diverse system requirements
• Features internal compensation and high-frequency switching operation to minimize external component count and board space
• Designed for robust performance in noise-sensitive applications with integrated thermal protection mechanisms

Applications

• Power supply systems for 32-bit and 64-bit microcontrollers and microprocessors
• DDR memory interface power delivery supporting DDR3, DDR3L, DDR4, and LPDDR4 standards
• System-on-module designs requiring highly integrated and small-footprint power solutions
• Autonomous mobile robots and collaborative robot control units

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels due to limited availability status. Confirm the specific suffix matches project requirements as ordering variations may exist. Check current lifecycle status and obsolescence notices prior to finalizing design-in decisions. Ensure storage conditions account for moisture sensitivity levels specified in the datasheet to maintain reliability during assembly processes.

Selection Notes

Select this component when designing systems requiring multiple regulated rails from a single 5V source with varying current demands. The integration of synchronous buck converters alongside an LDO reduces bill-of-materials complexity compared to discrete solutions. Evaluate thermal performance constraints based on the maximum load currents of each channel. Consider the 32-pin QFP footprint for PCB layout compatibility with existing reference designs.

Part Context

This part belongs to the RAA23040x series of PMICs developed by Renesas Electronics. The series targets embedded applications needing efficient power distribution for complex digital logic. Similar family members may offer different channel counts or current ratings. The #AA0 suffix typically denotes specific packaging or testing configurations defined by the manufacturer's internal coding standards.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official cross-reference guides for potential alternatives if this component is obsolete.
