RAZ62311DM

Antennas RF Overview

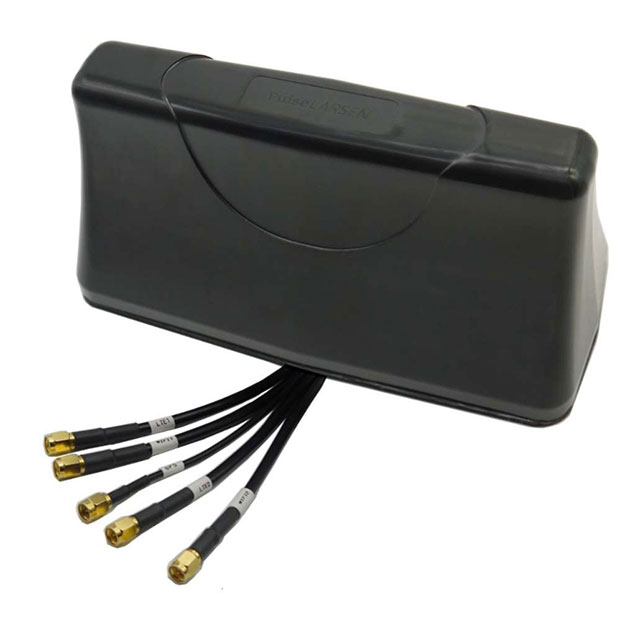

The RAZ62311DM is a Sharkfin-style vehicular antenna module from Pulse Electronics, designed for multiprotocol wireless communication. It supports LTE, Wi-Fi, and GNSS protocols with a frequency range of 644 MHz to 5.925 GHz. The unit features gains of 4.6 dBi, 4.9 dBi, 6 dBi, and 6.6 dBi across its bands. It operates at 50 Ohms impedance with a VSWR of 2:1 and handles up to 45 W power. Center frequencies include 802 MHz, 1.561098 GHz, 1.57542 GHz, 1.60256 GHz, 2.205 GHz, 2.45 GHz, and 5.4125 GHz. Operating temperature spans -40°C to +85°C.

Antennas RF Feature Summary

• Integrates multiple wireless protocols including cellular, Wi-Fi, and GNSS into a single Sharkfin module.
• Supports direct or permanent mounting for secure vehicular installation.
• Equipped with RP-SMA Male and SMA Male connectors for flexible interface options.

Antennas RF Applications

• Automotive telematics systems
• Connected vehicle infotainment networks
• GPS navigation integration in transport

Antennas RF Procurement Notes

Verify the specific datasheet version (e.g., W712) when sourcing, as manufacturer documentation may update connector types or gain specifications. Confirm lead times, as standard availability can extend to approximately 19 weeks depending on current production schedules. Ensure compatibility with existing vehicle roof mounts and RF cabling before finalizing orders.

Antennas RF Selection Notes

Select this model for applications requiring consolidated antenna solutions that reduce roof clutter while maintaining high performance across LTE, Wi-Fi, and GNSS bands. The Sharkfin form factor suits modern automotive aesthetics. Verify that the required gain levels (up to 6.6 dBi) meet signal coverage needs for the intended geographic deployment area.

Antennas RF Part Context

This component belongs to Pulse Electronics' vehicular antenna portfolio, which focuses on multiprotocol solutions for the automotive sector. The RAZ62311DM represents a specialized design for integrating diverse wireless standards into a single physical unit, supporting the growing connectivity demands of modern vehicles.

Antennas RF Replacement Considerations

The RAZ62311AM is a related variant within the same product family. Compare technical specifications such as gain values and connector types to ensure functional equivalence before substitution.

Antennas RF FAQ

What connector types are available for the RAZ62311DM?

The antenna is equipped with both RP-SMA Male and SMA Male connectors to accommodate different cable interfaces.

Does this antenna support Bluetooth or Zigbee protocols?

Yes, the specifications indicate support for 802.15.4 protocols, including ANT, Thread, and Zigbee, alongside Bluetooth and BLE.
