Product Detailed Parameters
- Description：CMC 1MH 16A 2LN TH
- Series：RB
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：16A
- DC Resistance (DCR) (Max)：4.8mOhm (Typ)
- Voltage Rating - DC：1000V (1kV)
- Voltage Rating - AC：600V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.098" L x 2.020" W (53.29mm x 51.31mm)
- Height (Max)：1.634" (41.50mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：1 mH @ 400 Hz
Download product information
Overview

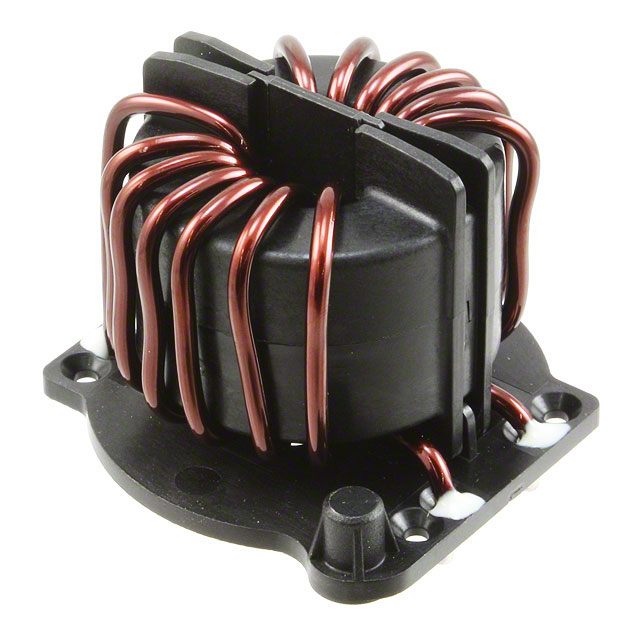

The Schaffner RB6122-16-1M0 is a radial through-hole common mode choke from the RB series. It features an inductance of 1 mH with a tolerance of -30% to +50%. The component supports a maximum DC current of 16 A and has a typical DC resistance of 4.8 mΩ. It operates within a temperature range of -40°C to 125°C and withstands up to 1000 V DC. Key dimensions include a diameter of 51.34 mm, height of 41.5 mm, and lead pitch of 15.24 mm.
Feature Summary
- Provides effective common mode noise suppression for two-line circuits
- Designed for high current handling capabilities up to 16 A
- Constructed with ferrite core material for stable performance
- Suitable for PCB mounting via radial through-hole termination
Applications
- EMC/EMI filtering in medical devices
- Power supply input stages
- Industrial control systems
Procurement Notes
Verify the specific part number RB6122-16-1M0 against official TE Connectivity/Schaffner documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with your circuit's voltage and current requirements. Check for RoHS compliance status as per the latest manufacturer datasheet before procurement.
Selection Notes
Select this component when a 1 mH inductance at 400 Hz is required for common mode noise reduction. Consider the 16 A current rating and 4.8 mΩ DC resistance for power loss calculations. Ensure the radial package and 15.24 mm lead pitch fit the PCB layout constraints.
Part Context
This component belongs to the Schaffner RB series of common mode chokes, designed for EMC/EMI applications. The series offers various inductance and current ratings for different filtering needs. Schaffner, now part of TE Connectivity, specializes in electromagnetic interference filters and components for industrial and medical markets.
Replacement Considerations
Check for equivalent parts in the RB series with similar inductance and current ratings. Verify pinout and dimensional compatibility before substitution. Consult official cross-reference lists for confirmed alternatives.
