RB6122-36-0M5

Overview

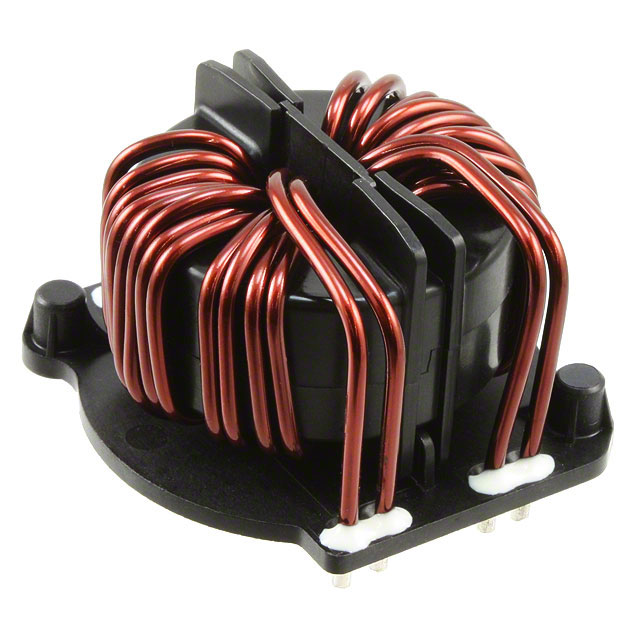

The RB6122-36-0M5 is a two-line common mode choke manufactured by Schaffner EMC Inc. It features an inductance of 450 µH measured at 1 kHz and supports a maximum current rating of 36 A. The component has a typical DC resistance (DCR) of 1.5 mOhm and operates within a temperature range of -40°C to +125°C. Designed for through-hole mounting, it handles voltages up to 600 VDC and 1 kV isolation. This filter is engineered for electromagnetic interference suppression in power line applications.

Feature Summary

• Provides effective common mode noise attenuation for dual-line configurations
• Supports high current loads with low DC resistance for minimal power loss
• Engineered for robust thermal performance across extended operating temperatures

Applications

• Power supply units requiring EMI suppression
• Battery charging systems
• Portable electronic devices
• Energy-efficient industrial equipment

Procurement Notes

Verify the specific voltage ratings and current capabilities against your system requirements before integration. Confirm that the through-hole termination style matches your PCB layout constraints. Ensure the operating temperature range aligns with your environmental conditions. Cross-reference the datasheet for insulation and safety certifications relevant to your region's regulatory standards.

Selection Notes

Select this component when high-current handling and compact common mode filtering are required. The 36 A rating suits heavy-duty power lines, while the 450 µH inductance offers balanced noise reduction. Consider the 1.5 mOhm DCR for efficiency needs. Evaluate the through-hole form factor against available board space and mechanical stability requirements for your assembly process.

Part Context

This part belongs to the RB series of EMC/RFI chokes from Schaffner EMC Inc., designed for general-purpose power line filtering. The series covers various current and inductance combinations to address diverse electromagnetic compatibility challenges in industrial and consumer electronics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
