RB6132-16-0M8

Overview

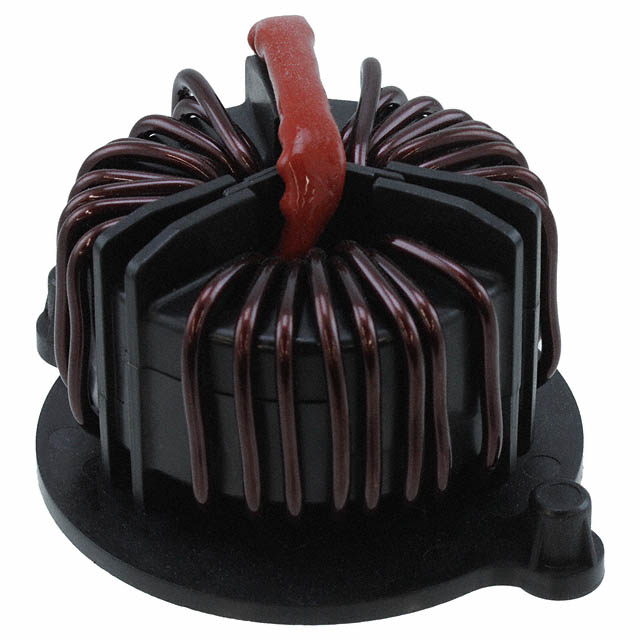

The RB6132-16-0M8 is a common mode choke manufactured by TE Connectivity / Schaffner. It belongs to the RB series and features a horizontal PCB mount configuration with through-hole termination. The component utilizes a ferrite core and is unshielded. Key electrical parameters include an inductance of 16 mH, a maximum DC current rating of 16 A, and a maximum DC resistance of 4.6 mOhms. The device operates within a temperature range of -40°C to +100°C.

Feature Summary

• Provides common mode noise suppression for power lines
• Designed for horizontal printed circuit board mounting
• Utilizes ferrite core material for magnetic performance

Applications

• Photovoltaic inverters
• Motor drives
• Fast charging stations

Procurement Notes

Verify the manufacturer part number against official TE Connectivity or Schaffner documentation to ensure authenticity. Confirm that the specific suffix matches the required inductance and current ratings. Check for RoHS compliance status as indicated in the latest datasheet. Ensure the package type and pin configuration align with the target PCB layout design requirements.

Selection Notes

Select this component when high current handling up to 16 A is required alongside significant common mode filtering. The low DC resistance minimizes power loss in the conduction path. Verify that the physical dimensions fit the available board space for horizontal mounting. Ensure the operating environment temperature remains within the specified -40°C to +100°C range for reliable operation.

Part Context

This component is part of the RB series from Schaffner EMC Inc., now under TE Connectivity. The series focuses on common mode chokes for industrial and renewable energy applications. These components are engineered to meet stringent electromagnetic compatibility standards in demanding power electronics environments.

Replacement Considerations

Public confirmed substitute part numbers were not identified in the provided source data.
