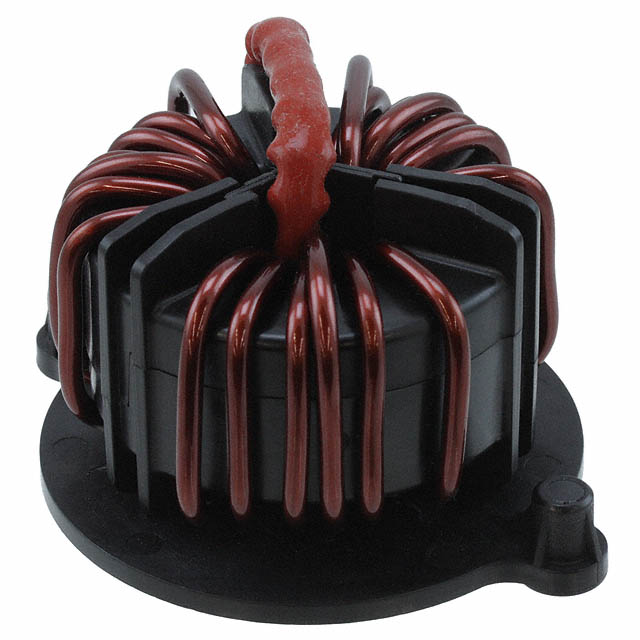

RB6132-25-0M5

Overview

The RB6132-25-0M5 is a three-line common mode choke from the RB series, manufactured by TE Connectivity / Schaffner. It features a horizontal PCB mount design with through-hole termination. The component provides an inductance of 470 µH at 400 Hz and supports a maximum DC current of 25 A. It operates within a temperature range of -40°C to +125°C and has a maximum height of 48.00 mm.

Feature Summary

• Three-line common mode filtering configuration for power line applications
• Horizontal PCB mounting style with through-hole termination
• High current handling capability up to 25 A
• Robust thermal performance suitable for demanding environments

Applications

• Photovoltaic (PV) inverters
• Motor drives
• Fast charging stations

Procurement Notes

Verify the specific datasheet version for the RB6132-25-0M5 to confirm mechanical dimensions and electrical tolerances match your design requirements. Ensure compatibility with the intended PCB layout for through-hole mounting. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Confirm RoHS compliance status if required by your assembly standards.

Selection Notes

Select this component when high current capacity and compact horizontal mounting are required for EMC filtering in power electronics. The three-line design is suitable for systems requiring neutral line filtering. Consider the 25 A rating and 470 µH inductance for matching circuit impedance and noise suppression needs in industrial or renewable energy applications.

Part Context

This component belongs to the RB series of common mode chokes designed for robust power line filtering. It is part of TE Connectivity's Schaffner portfolio, which specializes in electromagnetic compatibility solutions. The RB series is engineered for durability in high-stress electrical environments, providing reliable interference suppression for sensitive electronic equipment.

Replacement Considerations

Publicly confirmed substitute part numbers for the RB6132-25-0M5 were not identified in the provided source material. Verify compatibility with alternative components by comparing inductance, current rating, and physical dimensions before substitution.
