RB6132-36-0M4

Overview

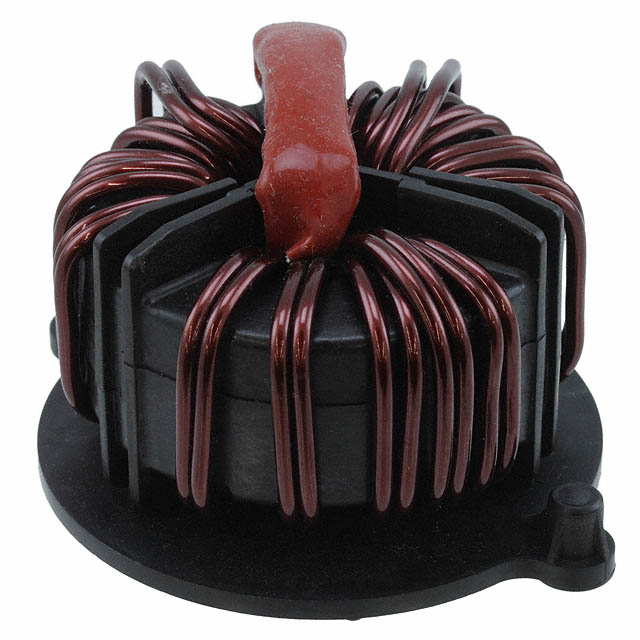

The RB6132-36-0M4 is a three-line common mode choke from the Schaffner RB series, designed for horizontal through-hole mounting. It features an inductance of 420 µH with a tolerance of -30% to +50%. The component supports a maximum DC current of 36 A and has a typical DC resistance of 1.4 mΩ. It operates within a temperature range of -40°C to +125°C and is rated for AC voltages up to 600V and DC voltages up to 1000V.

Feature Summary

• Provides high-performance common mode filtering for three-phase power lines
• Utilizes current-compensated choke technology for effective noise suppression
• Supports high current handling capabilities suitable for demanding industrial applications

Applications

• Industrial motor drives and inverters
• Three-phase power supply systems
• Medical device power inputs
• Uninterruptible power supplies (UPS)

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct pin configuration and mechanical dimensions. Confirm RoHS compliance status and lead-free certification requirements prior to procurement. Cross-reference the part number with authorized distributors to validate authenticity and avoid counterfeit components.

Selection Notes

Select this component when designing three-phase circuits requiring robust common mode noise attenuation. Ensure the application current does not exceed the 36 A rating to maintain thermal stability. Verify that the PCB layout accommodates the horizontal mounting style and the physical dimensions of the choke core.

Part Context

This component belongs to the RB series of EMC/EMI chokes manufactured by TE Connectivity Schaffner. The series is engineered for high-current applications, offering reliable performance in harsh electromagnetic environments. It serves as a critical element in maintaining signal integrity and regulatory compliance in power electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference specifications carefully if considering alternative brands.
