RB6132-50-0M2

Overview

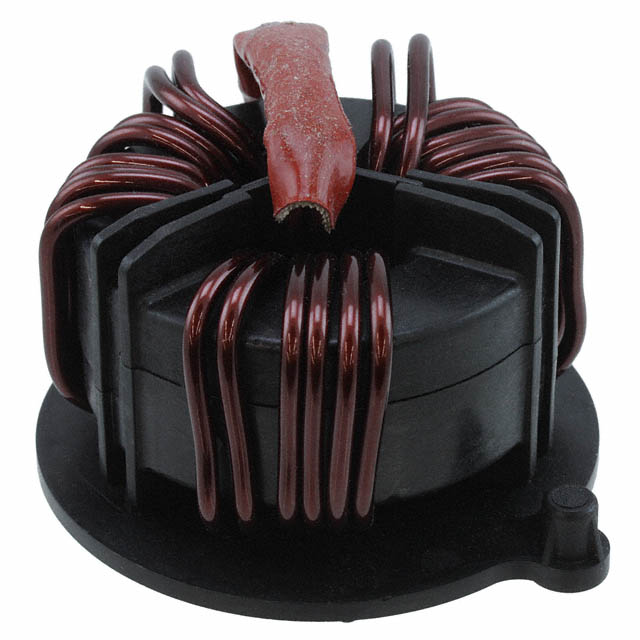

The Schaffner RB6132-50-0M2 is a three-line common mode choke from the RB series, designed for high-performance electromagnetic interference filtering. It features an inductance of 180 µH at 1 kHz and supports a maximum DC current of 50 A. The component has a low DC resistance of 0.9 mΩ and operates within a temperature range of -40°C to 125°C. It utilizes a horizontal through-hole mounting style with four PC pins, measuring 67.9 mm in length, 66.9 mm in width, and 52.00 mm in height.

Feature Summary

• Three-line configuration for balanced power distribution networks
• High current handling capability up to 50 A
• Low DC resistance for efficient power transmission
• Robust thermal performance across wide operating temperatures

Applications

• Industrial power supply systems
• Uninterruptible power supplies (UPS)
• Motor drive applications

Procurement Notes

Verify the specific part number RB6132-50-0M2 against official Schaffner documentation to confirm technical specifications. Ensure compatibility with your system's voltage and current requirements. Check for RoHS compliance status as per the latest manufacturer datasheet. Confirm mounting dimensions and pin configuration match your PCB layout constraints before finalizing procurement decisions.

Selection Notes

Select this component when three-phase or multi-wire common mode noise suppression is required in high-current environments. The 180 µH inductance provides effective filtering for specific frequency ranges. Consider the 50 A current rating and 0.9 mΩ DCR for efficiency needs. Evaluate the horizontal package size against available board space. Compare operating temperature limits with environmental conditions.

Part Context

This component belongs to Schaffner's RB series of common mode chokes, which are engineered for demanding industrial and commercial applications. The series offers various inductance and current ratings to suit different power electronics designs. The RB6132-50-0M2 specifically addresses high-current, multi-line filtering challenges with its robust construction and precise electrical characteristics.

Replacement Considerations

Consult Schaffner's official substitution guide for verified equivalent parts. Cross-reference inductance, current rating, and physical dimensions when considering alternatives. Ensure any substitute maintains the three-line configuration and similar thermal performance characteristics.
