RB6522-25-0M6

Overview

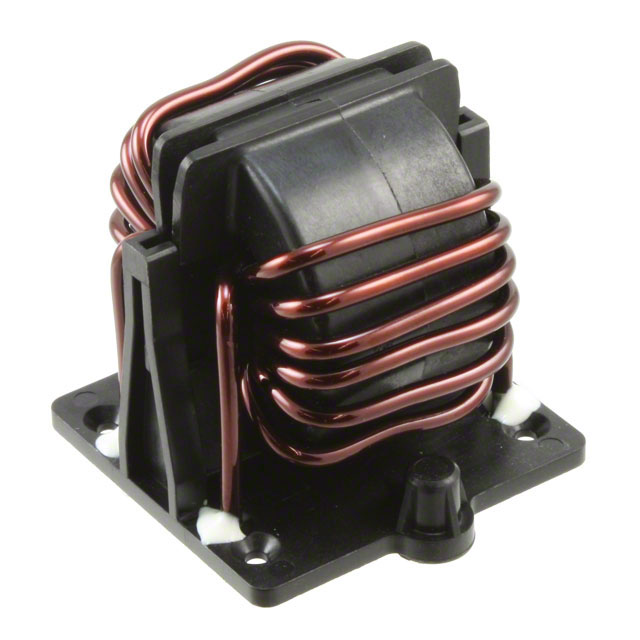

The RB6522-25-0M6 is a radial common mode choke from the Schaffner RB series, designed for EMC/EMI filtering in power line applications. It features an inductance of 640 µH at 400 Hz and supports a maximum current rating of 25 A. The component has a typical DC resistance of 2.6 mΩ and operates within a voltage range up to 1000 V AC/DC. It utilizes PCB terminal termination and is suitable for through-hole mounting.

Feature Summary

• Provides effective common mode noise suppression for power lines
• Supports high current handling capabilities for robust performance
• Designed for reliable operation in demanding electromagnetic environments

Applications

• EMC/EMI filtering in medical devices
• Power line noise reduction in industrial equipment
• Electromagnetic compatibility enhancement in general electronic systems

Procurement Notes

Verify the exact inductance tolerance and DC resistance values against the official TE Connectivity Schaffner datasheet before integration. Confirm that the radial lead configuration and PCB terminal type match your board layout requirements. Ensure the operating temperature range meets your system's environmental specifications.

Selection Notes

Select this component when a 25 A current rating and 640 µH inductance are required for common mode noise suppression. Consider its radial package and through-hole mounting style for compatibility with existing assembly processes. Evaluate its voltage rating and DC resistance to ensure it fits within the system's electrical constraints.

Part Context

This part belongs to the RB series of common mode chokes by Schaffner, which are engineered for high-performance EMC applications. The series offers various inductance and current ratings to suit different power line filtering needs. These components are widely used in industries requiring strict electromagnetic compatibility standards.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
