RB6522-36-0M5

Overview

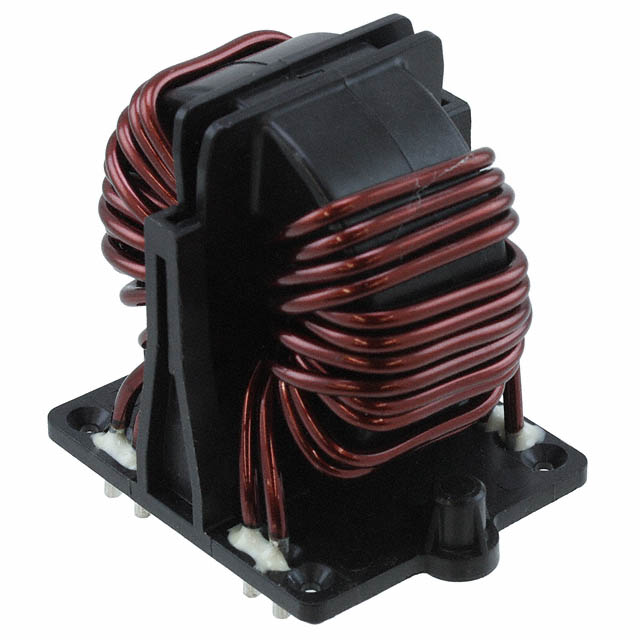

The RB6522-36-0M5 is a two-wire vertical through-hole common mode choke from the Schaffner RB series. It provides an inductance of 450 µH at 400 Hz and supports a current rating of 36 A. The component features a typical DC resistance of 1.5 mΩ and utilizes a four-pin vertical package configuration for PCB mounting.

Feature Summary

• Provides high-performance electromagnetic interference filtering for power lines
• Utilizes a current-compensated design to minimize size while maintaining efficiency
• Supports vertical through-hole installation for robust mechanical connection

Applications

• Industrial power supply input stages
• Electromagnetic compatibility filtering in electronic equipment
• Power line noise suppression in AC/DC conversion systems

Procurement Notes

Verify the manufacturer part number RB6522-36-0M5 against official TE Connectivity Schaffner documentation to confirm specifications. Ensure the procurement source provides valid RoHS3 compliance declarations. Cross-reference technical datasheets for accurate inductance and current ratings before integration into designs.

Selection Notes

Select this component when designing circuits requiring significant common mode noise attenuation at 400 Hz. The 36 A current capacity suits high-power applications. Verify that the vertical through-hole form factor aligns with the printed circuit board layout constraints and thermal management requirements of the target system.

Part Context

This component belongs to the Schaffner RB series of EMC/RFI chokes. These devices are engineered for high-performance filtering in demanding environments. The series emphasizes compact sizing and reliable operation within industrial and commercial power electronics applications.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model are not available in the provided reference data. Consult official manufacturer channels for verified cross-references.
