Product Detailed Parameters
- Description：CMC 250UH 50A 2LN TH
- Series：RB
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：50A
- DC Resistance (DCR) (Max)：0.9mOhm (Typ)
- Voltage Rating - DC：1000V (1kV)
- Voltage Rating - AC：600V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.969" L x 1.709" W (50.00mm x 43.40mm)
- Height (Max)：2.283" (58.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：250 µH @ 400 Hz
Download product information
Overview

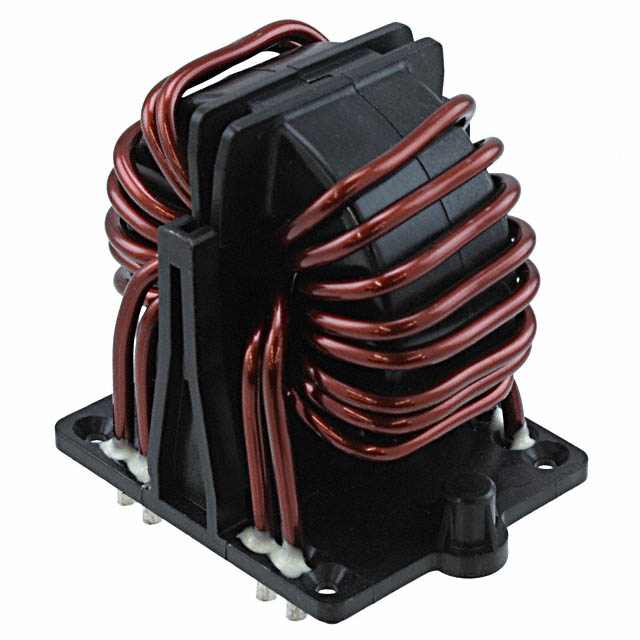

The Schaffner RB6522-50-0M3 is a radial lead current compensation choke designed for high-current applications. It features an inductance of 250 µH and supports a maximum DC current of 50 A. The component has a maximum DC resistance (Rdc) of 0.9 mΩ and operates up to a maximum self-resonant frequency of 400 Hz. Rated for 1000 V AC/DC, it utilizes PC pin termination with a 5.08 mm lead pitch. Physical dimensions include a 52 mm diameter and 58 mm height, operating within a temperature range of -40°C to 125°C.
Feature Summary
- Provides effective common mode noise filtering for power lines through current compensation design.
- Capable of handling high continuous DC currents up to 50 A with minimal resistive loss.
- Constructed for robust performance in industrial environments with wide thermal tolerance.
Applications
- Industrial equipment power supply filtering
- Automation control system EMI suppression
- Medical device power input protection
Procurement Notes
Verify the specific part number RB6522-50-0M3 against official Schaffner documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with PCB layout requirements regarding lead pitch and hole size. Check for RoHS compliance status if required by project specifications. Confirm voltage ratings match the application's peak operational conditions.
Selection Notes
Select this component when high current capacity and low DC resistance are critical for minimizing power loss in power line filtering. The radial package suits through-hole mounting where mechanical stability is needed. Consider the 250 µH inductance value for the target frequency range of noise attenuation. Verify that the 1000 V rating exceeds the system's maximum operating voltage.
Part Context
This component belongs to the Schaffner RB series of current compensation chokes. These filters are engineered for electromagnetic interference (EMI) suppression in demanding power electronics applications. The series offers various inductance and current ratings to suit different power levels while maintaining compact form factors suitable for panel or board mounting.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Consult Schaffner technical support for equivalent alternatives if this specific model is unavailable.
FAQ
What is the maximum DC current rating for the RB6522-50-0M3?
The maximum permissible DC current is 50 A.
Does this choke support automotive standards?
No, the component is not certified for automotive standards according to available specifications.
