Product Detailed Parameters
- Description：CMC 800UH 16A 3LN TH
- Series：RB
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：3
- Current Rating (Max)：16A
- DC Resistance (DCR) (Max)：4.7mOhm (Typ)
- Voltage Rating - DC：1000V (1kV)
- Voltage Rating - AC：600V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.283" L x 2.165" W (58.00mm x 55.00mm)
- Height (Max)：2.283" (58.00mm)
- Package / Case：Vertical, 6 PC Pin
- Inductance @ Frequency：800 µH @ 1 kHz
Download product information
Overview

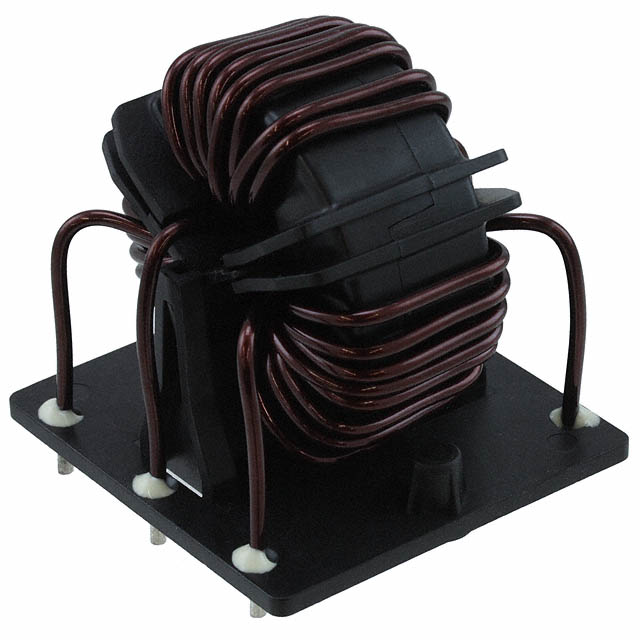

The Schaffner RB6532-16-0M8 is a vertical, three-line common mode choke from the RB Series. It features an inductance of 800 µH at 1 kHz and a current rating of 16 A IDC. The component utilizes through-hole mounting with six PC pins for PCB termination. Its typical DC resistance is 4.7 mOhms, designed for efficient electromagnetic interference suppression in power applications.
Feature Summary
- Vertical construction with six PC pin terminals for secure PCB integration
- Three-line configuration providing effective common mode noise suppression
- Low DC resistance design to minimize power loss during operation
Applications
- Power supply units
- Battery chargers
- Energy-efficient systems
Procurement Notes
Verify the specific part number RB6532-16-0M8 against official TE Connectivity Schaffner documentation to confirm technical specifications. Ensure compatibility with your PCB layout requirements regarding vertical mounting and terminal pitch. Cross-reference datasheets for exact inductance and current ratings before finalizing procurement decisions.
Selection Notes
Select this component when a vertical form factor is required for space-constrained PCB designs. The 16 A current rating suits moderate power applications. Verify that the 800 µH inductance meets the specific EMI filtering needs of the target circuit. Confirm that the through-hole technology aligns with the manufacturing process.
Part Context
This component belongs to the Schaffner RB Series of common mode chokes. These filters are engineered for general-purpose electromagnetic interference suppression. The series offers various current and inductance options to accommodate diverse power electronics requirements across industrial and consumer markets.
Replacement Considerations
Publicly confirmed substitute part numbers for this specific model were not identified in the provided source material. Consult official manufacturer channels for verified alternatives if direct replacement is necessary.
FAQ
What is the inductance value of the RB6532-16-0M8?
The inductance is 800 µH measured at 1 kHz.
How many lines does this common mode choke support?
It is a three-line common mode choke designed for multi-phase or line-neutral-ground configurations.
