RB6532-25-0M5

Overview

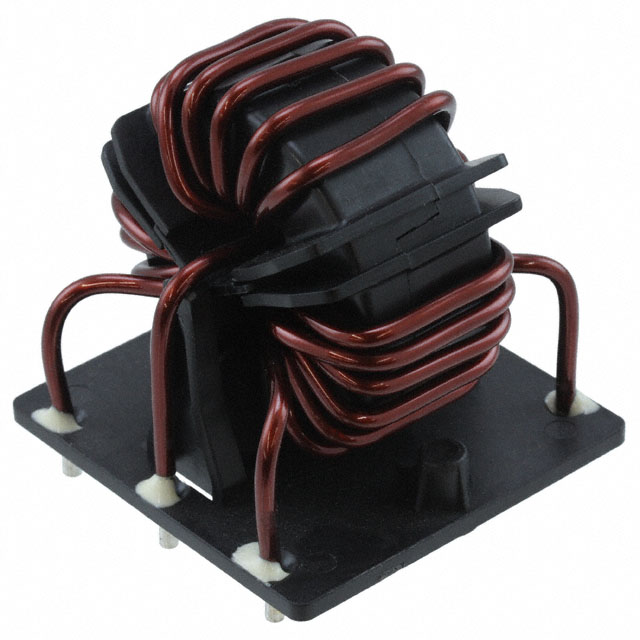

The RB6532-25-0M5 is a three-line common mode choke from the Schaffner RB series, designed for electromagnetic interference suppression. It features a 470 µH inductance at 400 Hz and supports a maximum current rating of 25 A. The component operates within a voltage range of up to 600 V AC or 1 kV DC. It utilizes a toroidal core construction with through-hole termination for PCB mounting. The typical direct current resistance is 2.4 mΩ, and it functions reliably across an operating temperature range of -40°C to +125°C.

Feature Summary

• Provides effective common mode noise attenuation for three-phase power lines
• Utilizes a robust toroidal core design for high magnetic efficiency
• Supports high current handling capabilities suitable for industrial applications

Applications

• Industrial motor drives and variable frequency drives
• Medical equipment power supplies
• Uninterruptible power supply systems

Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct pin configuration and mechanical dimensions. Confirm that the required inductance value and current rating align with the system's operational parameters before procurement. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Selection Notes

Select this component when a three-phase common mode choke with a 25 A rating and 470 µH inductance is required. Ensure the PCB layout accommodates the vertical through-hole package dimensions. Verify that the operating voltage does not exceed 600 V AC or 1 kV DC limits under all transient conditions.

Part Context

This part belongs to the Schaffner RB series, which offers a wide range of EMC/EMI components including chokes and filters. The series is engineered for medical and industrial applications, covering voltage ranges from 250 VAC to 3000 VAC and current ratings from 1 A to 2300 A depending on the specific model variant.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer cross-reference lists for verified alternatives.
