RB751S-40DP-TP

Single Diodes Overview

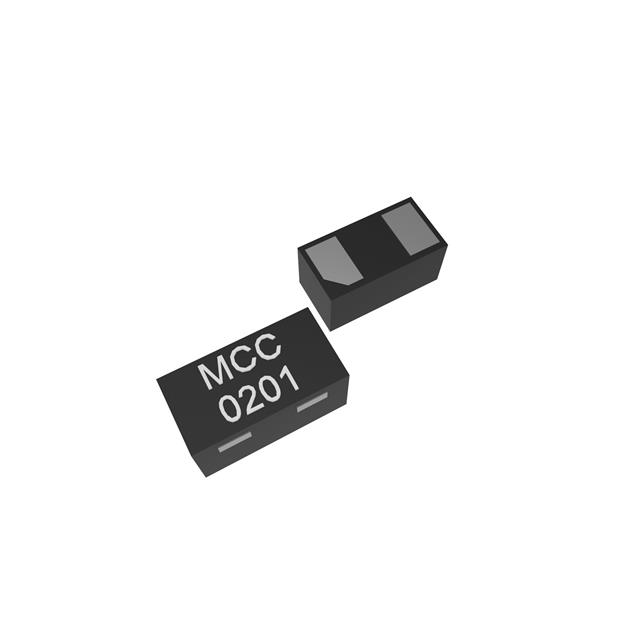

The RB751S-40DP-TP is a Schottky barrier diode manufactured by Micro Commercial Components. It features a maximum repetitive peak reverse voltage of 40 V and a mean rectifying current of 30 mA. The device operates within a junction temperature range of -55°C to +125°C. Electrical characteristics include a forward voltage of 0.37 V at 1 mA, a reverse current of 0.5 µA at 30 V, and a capacitance of 2 pF at 1 V. Power dissipation is rated at 100 mW with a thermal resistance of 1000°C/W.

Single Diodes Feature Summary

• Halogen-free construction with RoHS compliance
• Low reverse current and low forward voltage for efficiency
• Small surface-mount package design
• Epoxy material meets UL 94 V-0 flammability rating

Single Diodes Applications

• General purpose switching applications
• High reliability circuits requiring small form factors
• Power supply rectification in consumer electronics

Single Diodes Procurement Notes

Verify the specific ordering suffix matches the required packaging quantity. Confirm that the component is sourced from authorized distributors to ensure authenticity and traceability. Check datasheet revisions for any updates to electrical parameters or mechanical dimensions before finalizing procurement specifications.

Single Diodes Selection Notes

Select this component for applications requiring a compact Schottky diode with low forward voltage drop. Ensure the operating environment stays within the specified thermal limits. Consider the 0201 package size constraints during PCB layout. Verify compatibility with automated assembly processes given the tape and reel packaging format.

Single Diodes Part Context

This part belongs to the RB751S series of surface mount Schottky barrier diodes from Micro Commercial Components. The series is designed for general-purpose switching and rectification where space is limited. The DP suffix indicates the specific 0201 package variant, distinguishing it from other package options within the same electrical family.

Single Diodes Replacement Considerations

Substitute parts must match the 40V reverse voltage, 30mA current rating, and 0201 package dimensions. Verify equivalent forward voltage and reverse leakage characteristics to maintain circuit performance.
