RB8522-16-3M0

Overview

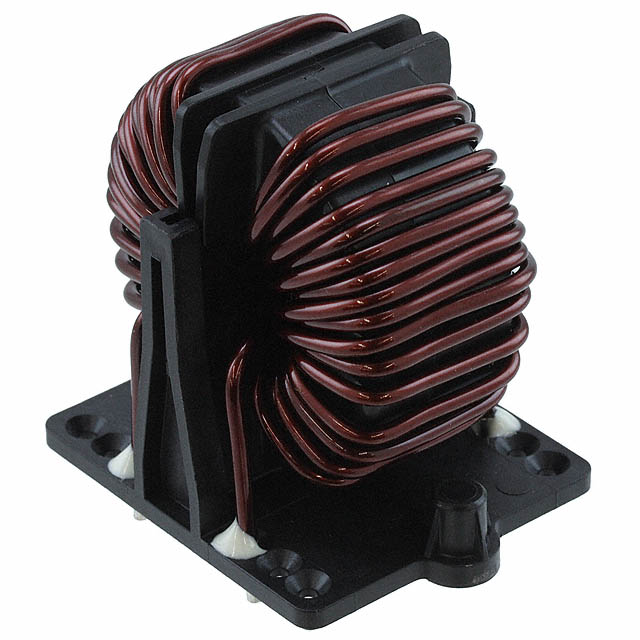

The RB8522-16-3M0 is a two-wire vertical mount common mode choke from the Schaffner RB series. It features an inductance of 3 mH with a tolerance of -30% to +50%. The component supports a maximum DC current of 16 A and has a typical DC resistance of 8.4 mΩ. It operates within a temperature range of -40°C to +125°C and withstands up to 1000 V AC/DC. The self-resonant frequency is 400 Hz, with a lead pitch of 5.08 mm.

Feature Summary

• Provides effective common mode noise suppression for two-wire circuits
• Designed for high current handling capabilities up to 16 A
• Vertical through-hole mounting style for PCB integration

Applications

• Electromagnetic interference filtering in power supplies
• Noise reduction in industrial control systems
• EMC compliance enhancement for electronic equipment

Procurement Notes

Verify that the specific part number matches the required inductance and current ratings for your application. Confirm that the vertical mounting orientation and through-hole termination are compatible with your PCB layout. Ensure the operating temperature range meets your environmental requirements. Check RoHS compliance status if necessary for your region.

Selection Notes

Select this component when a 3 mH inductance at 16 A is required for common mode noise filtering. Consider the vertical form factor and 5.08 mm lead pitch for board space constraints. Evaluate the 8.4 mΩ DC resistance against your efficiency targets. Compare with other RB series variants if different current or inductance values are needed.

Part Context

This component belongs to the Schaffner RB series of common mode chokes, designed for robust electromagnetic compatibility applications. It is manufactured by TE Connectivity / Schaffner, a provider of EMC solutions. The RB series is known for its reliability in industrial and commercial power electronics environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
