Product Detailed Parameters
- Description：CMC 1.5MH 36A 2LN TH
- Series：RB
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：36A
- DC Resistance (DCR) (Max)：3mOhm (Typ)
- Voltage Rating - DC：1000V (1kV)
- Voltage Rating - AC：600V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.362" L x 1.988" W (60.00mm x 50.50mm)
- Height (Max)：3.150" (80.00mm)
- Package / Case：Vertical, 8 PC Pin
- Inductance @ Frequency：1.5 mH @ 400 Hz
Download product information
Overview

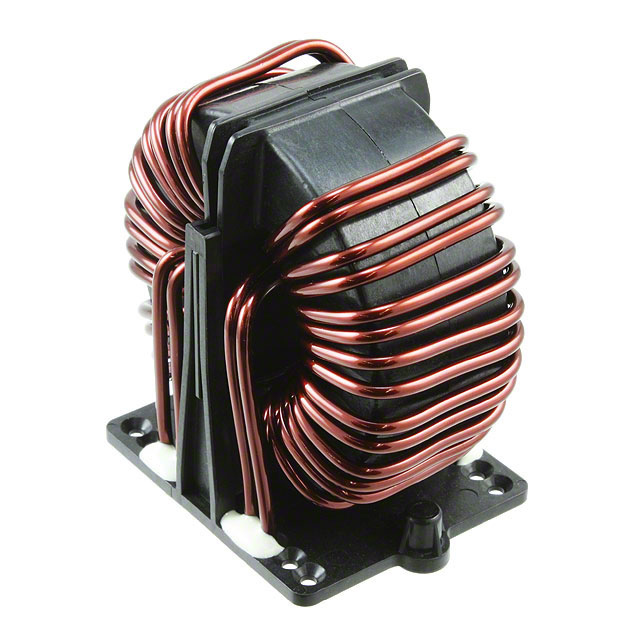

The Schaffner RB8522-36-1M5 is a two-line vertical through-hole common mode choke from the RB series. It features an inductance of 1.5 mH at 400 Hz and supports a maximum DC current of 36 A. The typical DC resistance is 3 mOhms. Designed for PCB mounting, it operates within a temperature range of -40°C to +125°C. The component utilizes a ferrite core and is RoHS compliant.
Feature Summary
- Vertical two-line construction for efficient PCB integration
- High current handling capability up to 36 A
- Ferrite core design for effective common mode noise suppression
Applications
- Electric vehicle charging systems
- AC/DC power supply filtering
- Industrial motor drive EMC mitigation
Procurement Notes
Verify the manufacturer part number RB8522-36-1M5 against official TE Connectivity/Schaffner documentation to confirm specifications. Ensure compatibility with PCB footprint dimensions and thermal requirements. Check for specific certification marks such as RoHS compliance relevant to your region. Confirm lead time and availability directly with authorized distributors or the manufacturer.
Selection Notes
Select this component when high current capacity and low impedance are required for common mode noise reduction in vertical mounting configurations. Consider the 1.5 mH inductance value at 400 Hz for appropriate filtering characteristics. Evaluate the 36 A current rating against peak load conditions. Verify that the operating temperature range meets environmental constraints.
Part Context
This component belongs to the RB series of current compensated chokes manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is designed for high-performance EMC/RFI filtering applications requiring robust current handling and reliable performance in demanding industrial and automotive environments.
Replacement Considerations
Consult official Schaffner or TE Connectivity substitution guides for verified alternatives. Cross-reference inductance, current rating, and physical dimensions before replacing.
