RB8532-16-1M3

Overview

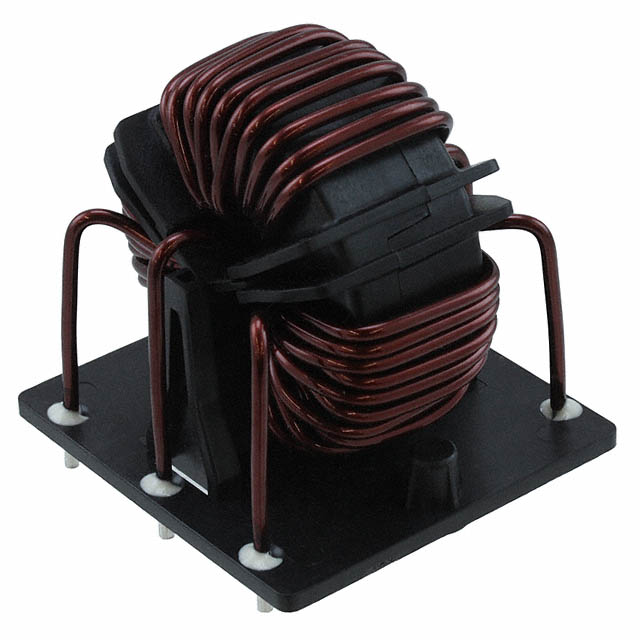

The Schaffner RB8532-16-1M3 is a vertical three-wire current compensated choke from the RB series. It features an inductance of 1.3 mH at 1 kHz and supports a maximum DC current of 16 A. The component has a typical DC resistance of 5.7 mOhm and a rated voltage of 1000 V DC. Designed for PCB mounting with through-hole termination, it operates within a temperature range of -40°C to +125°C.

Feature Summary

• Vertical three-wire configuration for high inductance performance
• Current compensated design for efficient filtering
• Through-hole PCB mounting for secure installation

Applications

• EMC/RFI filtering in power electronics
• Industrial equipment power supplies
• Medical device power systems

Procurement Notes

Verify the specific part number RB8532-16-1M3 against official TE Connectivity or Schaffner datasheets to confirm electrical parameters such as 1.3 mH inductance and 16 A current rating. Ensure compatibility with your PCB layout regarding vertical mounting height and pin spacing. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when a vertical three-wire choke is required for high-current applications up to 16 A. The 1.3 mH inductance provides effective noise suppression in EMI filter stages. Consider the 1000 V DC rating and wide operating temperature range for robust industrial or medical environments requiring reliable through-hole integration.

Part Context

This component belongs to the Schaffner RB series of standard ring-core chokes. The RB series is designed for EMC/EMI applications, offering high inductance values in compact vertical packages. The RB8532-16-1M3 specifically targets three-phase or single-phase with neutral filtering needs where high current handling and low DC resistance are critical.

Replacement Considerations

Consult official Schaffner substitution guides for verified equivalents. Cross-reference inductance (1.3 mH), current rating (16 A), and physical dimensions before replacing.
