RB8532-36-0M8

Overview

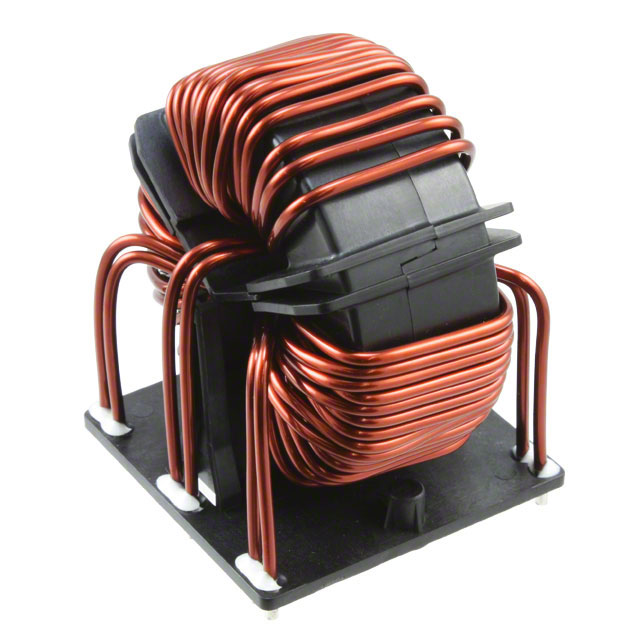

The Schaffner RB8532-36-0M8 is a vertical three-wire common mode choke from the RB series, rated for 36 A DC current and 0.83 mH inductance. It features a maximum self-resonant frequency of 400 Hz and a DC resistance of 2.3 mΩ. The component supports voltage ratings of 600 V AC and 1000 V DC, with an operating temperature range from -40°C to +125°C. Designed for through-hole PCB mounting, it utilizes ferrite core material and measures approximately 60 mm in length, 38 mm in width, and 63 mm in height.

Feature Summary

• Vertical three-wire configuration optimized for power line filtering applications
• Ferrite core construction providing high current compensation capabilities
• Through-hole termination style ensuring robust mechanical PCB attachment

Applications

• Photovoltaic (PV) inverters
• Motor drive systems
• Fast charging stations

Procurement Notes

Verify the specific part number RB8532-36-0M8 against official TE Connectivity/Schaffner documentation to confirm the 0.83 mH inductance value and 36 A rating. Ensure compatibility with vertical mounting requirements and verify that the 600 V AC / 1000 V DC voltage ratings meet system specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet before procurement.

Selection Notes

Select this component for applications requiring high-current common mode noise suppression in vertical form factors. The 0.83 mH inductance and 36 A rating suit heavy-duty power electronics. Consider the 400 Hz self-resonant frequency limit when designing for higher frequency interference. Verify thermal management needs given the 125°C maximum operating temperature and low DC resistance.

Part Context

This component belongs to the Schaffner RB series of current compensated chokes, manufactured by TE Connectivity/Schaffner. The series is designed for electromagnetic compatibility (EMC) filtering in power electronic systems. The RB8532 variant specifically addresses vertical mounting constraints while maintaining high current handling capabilities for industrial and renewable energy applications.

Replacement Considerations

Consult official Schaffner substitution guides for verified alternatives. Cross-reference inductance, current rating, and physical dimensions with other RB series models or equivalent TE Connectivity common mode chokes. Ensure any substitute maintains the vertical three-wire configuration and compatible voltage ratings.
