Product Detailed Parameters
- Description：DIODE ARRAY SCHOTT 30V 15A LPDS
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Diode Configuration：1 Pair Common Cathode
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：30 V
- Current - Average Rectified (Io) (per Diode)：15A
- Voltage - Forward (Vf) (Max) @ If：550 mV @ 15 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：300 µA @ 30 V
- Operating Temperature - Junction：150°C
- Mounting Type：Surface Mount

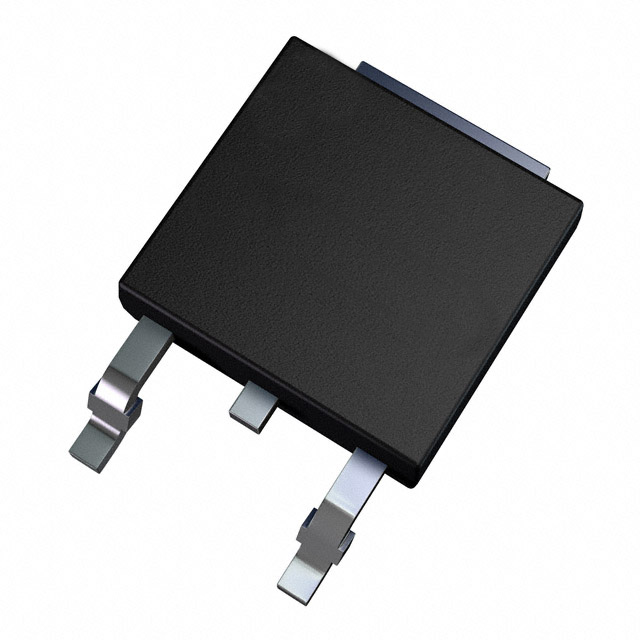

- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Supplier Device Package：LPDS
- Grade：-
- Qualification：-
Download product information
Overview
The RBR30NS30ATL is a Schottky barrier diode manufactured by ROHM Semiconductor, designed for switching power supplies. It features a cathode common dual configuration in a TO-263S (D2PAK) surface-mount package. Key electrical parameters include a 30V reverse voltage, 30A average rectified forward current, and a maximum forward voltage of 0.55V at 15A. The device supports a 100A surge current, operates up to a junction temperature of 150°C, and has a maximum reverse current of 0.3mA at 30V.
Feature Summary
- Cathode common dual type configuration
- Low forward voltage characteristics
- High reliability construction
Applications
- Switching power supplies
- General rectification applications
Procurement Notes
Verify the specific suffix 'TL' against official documentation to confirm tape-and-reel packaging details and quantity per reel. Ensure the component grade matches standard industrial requirements, as this variant is not designated for automotive use. Cross-reference the RoHS compliance status with the latest manufacturer release notes before finalizing procurement specifications.
Selection Notes
Select this component for designs requiring high current handling in a compact surface-mount form factor. The low forward voltage aids in improving overall system efficiency. Verify that the thermal management solution can handle the heat dissipation associated with 30A continuous operation. Confirm that the 30V rating provides sufficient margin for the target circuit's peak reverse voltage conditions.
Part Context
This part belongs to the RBR series of Schottky barrier diodes from ROHM Semiconductor. The series is characterized by low forward voltage drops and high reliability, making it suitable for various power conversion applications. The TO-263S package allows for efficient heat dissipation compared to smaller surface-mount options.
Replacement Considerations
Check for direct substitutes within the same series, such as the RBR30NS30AFH, which offers automotive-grade qualification under AEC-Q101 standards if higher reliability is required. Ensure any replacement maintains the same pinout, package dimensions, and electrical ratings to guarantee compatibility.
