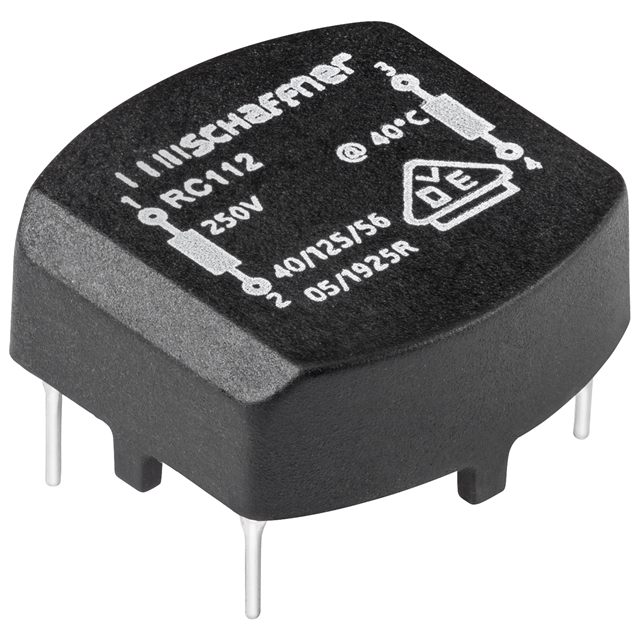

RC112-0.6-6M8

$1.11

Description：CMC 6.8MH 600MA 2LN TH
Series：RC
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:50177d8691b7 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 6.8MH 600MA 2LN TH
Series：RC
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：600mA
DC Resistance (DCR) (Max)：630mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：0.689" L x 0.689" W (17.50mm x 17.50mm)
Height (Max)：0.315" (8.00mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：6.8 mH @ 10 kHz

Download product information

RC112-0.6-6M8

Overview

The Schaffner RC112-0.6-6M8 is a common mode choke from the RB series, designed for high-performance filtering applications. It features an inductance of 6.8 mH and supports a maximum DC current of 0.6 A. The component has a maximum DC resistance (Rdc) of 630 mΩ and operates within a temperature range of -40°C to +125°C. It utilizes radial through-hole mounting with a lead pitch of 15.24 mm and leads of 2 mm diameter. The unit is RoHS compliant and certified under UL standards.

Feature Summary

Provides effective electromagnetic interference suppression in power line circuits
Supports high-temperature operation suitable for demanding industrial environments
Features a compact radial design for efficient printed circuit board integration

Applications

Industrial automation systems
Embedded systems requiring EMI filtering
Power supply input stages

Procurement Notes

Verify the manufacturer part number RC112-0.6-6M8 against official TE Connectivity Schaffner documentation to ensure authenticity. Confirm that the specified 6.8 mH inductance and 0.6 A current rating match your circuit requirements. Check for RoHS compliance status and UL certification marks on the datasheet before finalizing procurement decisions.

Selection Notes

Select this component when a 6.8 mH common mode choke is required for low-current applications up to 0.6 A. Ensure the PCB layout accommodates the 15.24 mm lead pitch and radial form factor. Verify thermal management capabilities given the 125°C maximum operating temperature limit for reliable long-term performance.

Part Context

This component belongs to the Schaffner RB series of common mode chokes, which are engineered for robust EMC performance. The RB series is widely utilized in industrial and commercial electronics where reliable noise suppression is critical. TE Connectivity Schaffner manufactures these components to meet stringent international safety and environmental standards.
