RC28B1265

Overview

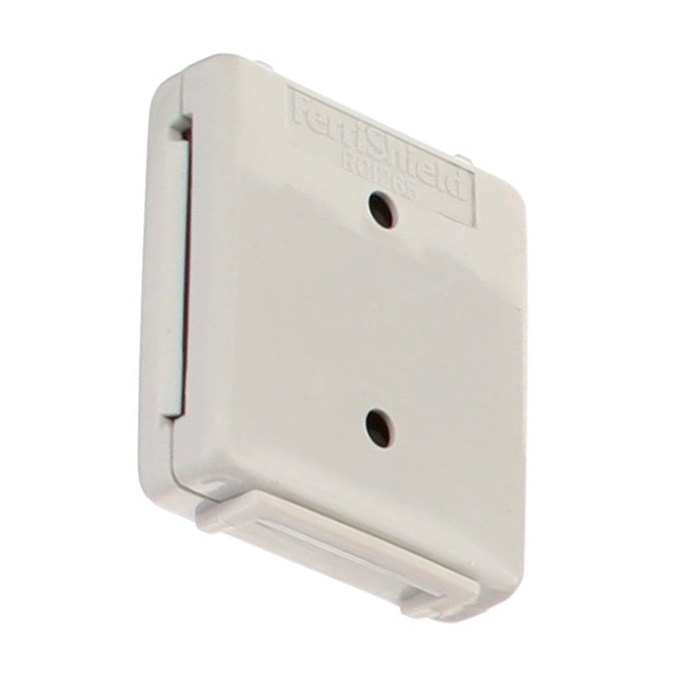

The RC28B1265 is a flat cable ferrite clamp manufactured by LeaderTech. It utilizes material grade 28 for EMI suppression. The component features an internal length of 26.6 mm and an internal height of 0.97 mm. Its impedance is rated at 148 Ohms. The unit is supplied in bulk packaging.

Feature Summary

• Designed as a low-profile core for flat cables and flexible circuits
• Accommodates up to 40 conductors within its slim inline design
• Incorporates a hinge mechanism with a cable grip for secure attachment

Applications

• Suppression on flat ribbon cables
• EMI filtering for flexible printed circuits
• High-density connector cable protection

Procurement Notes

Verify the specific datasheet version for the RC28B1265 to confirm RoHS compliance status and exact dimensional tolerances. Ensure the selected part matches the required 148 Ohm impedance specification for your target frequency range. Confirm that the hinge mechanism is suitable for the intended cable thickness and conductor count before finalizing procurement.

Selection Notes

Select this component when space constraints require a low-profile solution for flat cabling. The 28 material grade offers specific permeability characteristics suitable for high-frequency noise reduction. Verify that the 26.6 mm internal length accommodates the necessary cable bundle size without excessive strain on the hinge.

Part Context

This part belongs to the LeaderTech Ferrishield series of clamp-on ferrite cores. These components are engineered for easy installation onto existing cable assemblies without cutting or splicing. The product line focuses on providing effective electromagnetic interference mitigation for sensitive electronic interconnects.

Replacement Considerations

Cross-reference with other grade 28 flat cable clamps from LeaderTech, such as the RC28B3012, noting differences in internal dimensions and impedance ratings. Ensure any substitute maintains the required 148 Ohm performance and physical fit for the 40-conductor limit.
