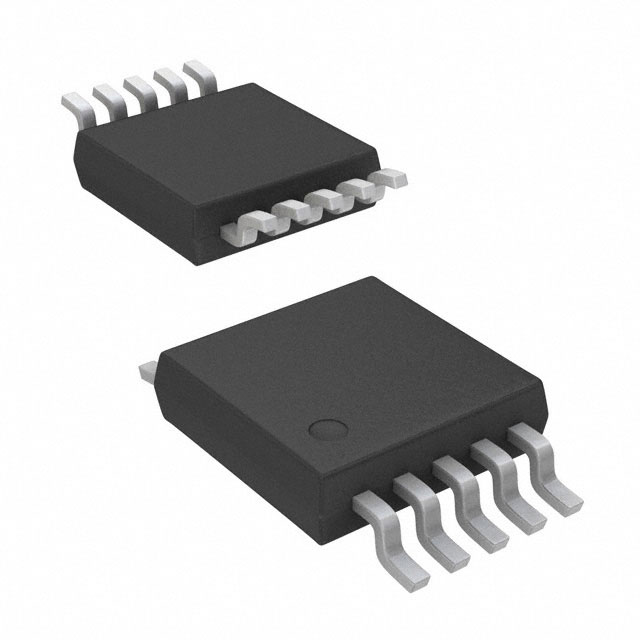

Tvs Diodes RCLAMP0504M.TBT product image

RCLAMP0504M.TBT

$1.87
  • Description：TVS DIODE 5VWM 25VC 10MSOP
  • Series：RailClamp®
  • Mfr：Semtech Corporation
  • Package：Tape & Reel (TR),Cut Tape (CT)

SKU:73fa3a76d57f Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

RCLAMP0504M.TBT is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Semtech Corporation. Its product description is TVS DIODE 5VWM 25VC 10MSOP. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for RCLAMP0504M.TBT

  • Description：TVS DIODE 5VWM 25VC 10MSOP
  • Series：RailClamp®
  • Mfr：Semtech Corporation
  • Package：Tape & Reel (TR),Cut Tape (CT)
  • Type：Steering (Rail to Rail)
  • Bidirectional Channels：-
  • Voltage - Reverse Standoff (Typ)：5V (Max)
  • Voltage - Breakdown (Min)：6V
  • Voltage - Clamping (Max) @ Ipp：25V
  • Current - Peak Pulse (10/1000µs)：12A (8/20µs)
  • Power - Peak Pulse：300W
  • Power Line Protection：Yes
  • Applications：General Purpose
  • Capacitance @ Frequency：3pF @ 1MHz
  • Operating Temperature：-55°C ~ 125°C (TJ)
  • Mounting Type：Surface Mount
  • Package / Case：10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Supplier Device Package：10-MSOP
  • Unidirectional Channels：4
  • Grade：-
  • Qualification：-

Tvs Diodes datasheet and documents for RCLAMP0504M.TBT

RCLAMP0504M.TBT

Explore related parts through Transient Voltage Suppressors (TVS), Circuit Protection, all product categories, ChipApex homepage.

How to buy
Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.
Payment Method
Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.
Delivery time
In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.
Freight calculation
Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.
Mode of Transportation
We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.
Return and Refund
Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.
