RCNL25R0F00R5KTT

Overview

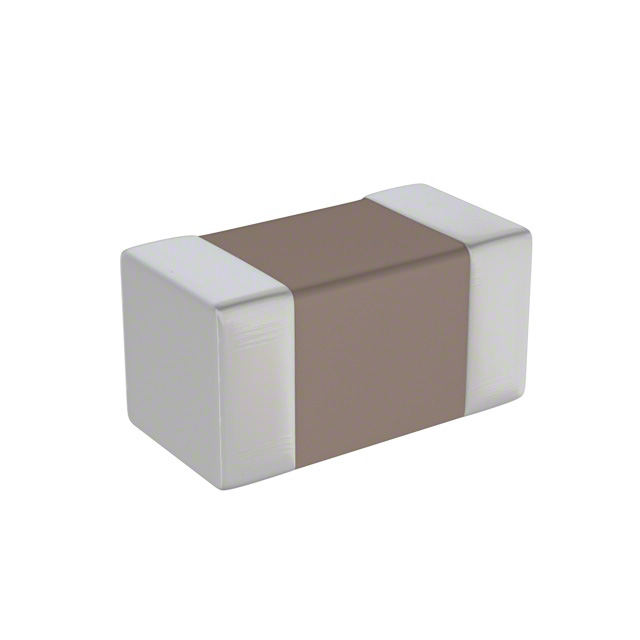

The RCNL25R0F00R5KTT is an active EMI filter circuit manufactured by KYOCERA AVX, belonging to the RCN series. It features a surface-mount 0402 (1005 Metric) package with dimensions of 1.00mm length, 0.50mm width, and 0.60mm height. The component integrates a 25 Ohm resistor channel with a 0.5 pF capacitance value. It operates within a temperature range of -55°C to +125°C and complies with RoHS3 standards.

Feature Summary

• Integrates a 25 Ohm resistance and 0.5 pF capacitance in a single compact SMD package
• Designed for general-purpose EMI filtering applications
• Operates reliably across a wide industrial temperature range from -55°C to +125°C

Applications

• General-purpose EMI filtering
• Signal line protection circuits
• Compact electronic device noise suppression

Procurement Notes

Verify the specific ordering suffix and packaging configuration when sourcing this component. Confirm that the received parts match the RCN series designation and 0402 footprint. Ensure compliance with current environmental regulations as indicated by RoHS3 status. Cross-reference manufacturer part numbers to avoid substitution errors during assembly.

Selection Notes

Select this component for designs requiring integrated RC filtering in minimal space. The 0402 package suits high-density PCB layouts. Verify that the 25 Ohm resistance and 0.5 pF capacitance values align with target impedance and frequency requirements. Ensure the operating environment stays within the specified -55°C to +125°C thermal limits.

Part Context

This part belongs to the KYOCERA AVX RCN series of resistor-capacitor networks. These components are engineered to replace discrete R and C arrangements, saving board space. The RCNL variant specifically denotes the 0402 form factor. This series supports modern miniaturization trends in consumer and industrial electronics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
