RCP1317NP-561L

$0.54

Description：FIXED IND 560UH 1.1A 590 MOHM TH
Series：RCP1317
Mfr：Sumida America Components Inc.
Package：Tape & Reel (TR)

SKU:1b1a5959e730 Category: Fixed Inductors Brand: Sumida America Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RCP1317NP-561L is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Sumida America Components Inc.. Its product description is FIXED IND 560UH 1.1A 590 MOHM TH. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for RCP1317NP-561L

Description：FIXED IND 560UH 1.1A 590 MOHM TH
Series：RCP1317
Mfr：Sumida America Components Inc.
Package：Tape & Reel (TR)
Type：-
Material - Core：Ferrite
Inductance：560 µH
Tolerance：±15%
Current Rating (Amps)：1.1 A
Current - Saturation (Isat)：1.25A
Shielding：Shielded
DC Resistance (DCR)：590mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 100°C
Inductance Frequency - Test：1 kHz
Mounting Type：Through Hole
Package / Case：Radial, Vertical Cylinder
Supplier Device Package：-
Size / Dimension：0.531" Dia (13.50mm)
Height - Seated (Max)：0.689" (17.50mm)
Features：-

Fixed Inductors datasheet and documents for RCP1317NP-561L

RCP1317NP-561L

Fixed Inductors Overview

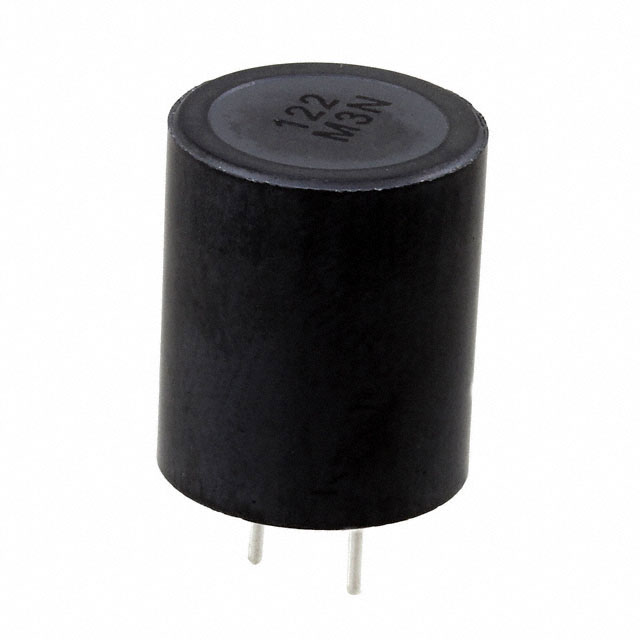

The RCP1317NP-561L is a shielded through-hole power inductor manufactured by Sumida America Components Inc. It features a ferrite drum core construction and radial termination style. The component provides an inductance of 560 µH with a tolerance of ±15%. It supports a maximum DC current of 1.1 A and has a saturation current of 1.25 A. The maximum DC resistance is 590 mΩ, measured at a test frequency of 1 kHz. The unit operates within a temperature range of -40°C to +100°C and measures 13.5 mm x 13.5 mm x 17.5 mm.

Fixed Inductors Feature Summary

Magnetically shielded design utilizing ferrite drum core construction
Radial leaded termination for PCB mounting applications
High saturation current capability relative to rated DC current

Fixed Inductors Applications

Power supply filtering circuits
DC-DC converter energy storage
General-purpose power electronics

Fixed Inductors Procurement Notes

Verify the specific suffix 'L' corresponds to the leaded variant when sourcing. Confirm that the 590 mΩ DCR and 1.1 A rating align with thermal management requirements. Ensure the 13.5 mm pitch matches the target PCB footprint. Cross-reference the manufacturer part number against official Sumida documentation to avoid confusion with surface-mount equivalents.

Fixed Inductors Selection Notes

Select this component for applications requiring high magnetic shielding to minimize electromagnetic interference. The radial package suits manual or wave soldering processes. Evaluate the 1.25 A saturation limit against peak load currents. Consider the 100°C operating temperature ceiling for environmental constraints. Compare physical dimensions against available board space before finalizing the design.

Fixed Inductors Part Context

This part belongs to the RCP1317 series of power inductors from Sumida. The series utilizes ferrite drum cores for efficient magnetic shielding. These components are designed for robust performance in power conversion systems. The RCP1317NP-561L specifically offers 560 µH inductance. It is distinct from surface-mount variants like the CDH series.
