Product Detailed Parameters
- Description：LINE FILTER SURFACE MOUNT
- Series：-
- Mfr：R-K Electronics, Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：-
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：-
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：cURus
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Surface Mount
- Termination Style：Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

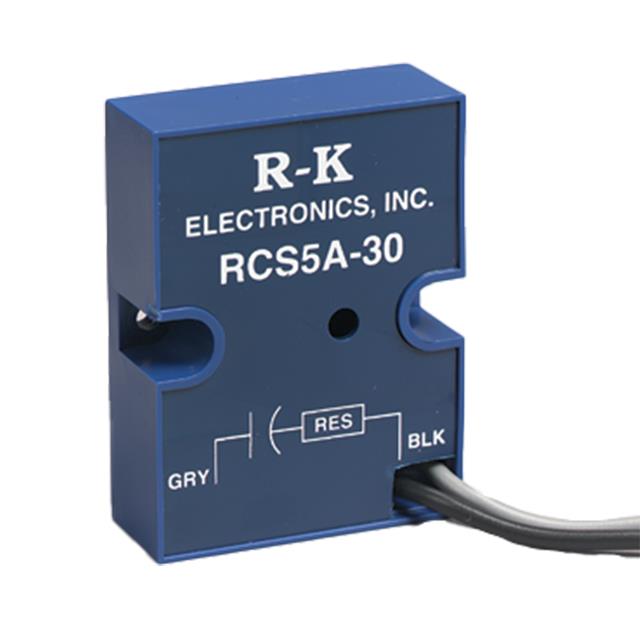

The RCS5A-30V is a single-phase transient voltage filter and snubber module manufactured by R-K Electronics, Inc. Designed for power line applications, this component operates at a rated voltage of 480VAC and utilizes a capacitance value of 0.47 microfarads. It features wire leads for connection and is packaged in bulk. The device functions as an EMC/EMI line filter suitable for 50 to 60Hz systems.
Feature Summary
- Provides transient voltage suppression and noise filtering for single-phase circuits
- Functions as a snubber to mitigate electrical interference
- Designed for general-purpose industrial power line applications
Applications
- Single-phase power line filtering
- EMC/EMI noise reduction in industrial equipment
- Transient voltage suppression for sensitive electronics
Procurement Notes
Verify the specific datasheet for the RCS5A-30V to confirm exact electrical tolerances and mounting requirements before integration. Ensure compatibility with 480VAC systems and single-phase configurations. Check for RoHS compliance status if required by your manufacturing standards. Confirm that wire lead connections meet your assembly specifications.
Selection Notes
Select this component when single-phase transient suppression is required for 480VAC circuits. The 0.47MFD capacitance rating defines its filtering characteristics. Consider the wire lead package type for ease of installation in existing wiring harnesses. Verify that the general-purpose classification meets the environmental conditions of the target application.
Part Context
This part belongs to the RCS5A series of power line filter modules from R-K Electronics, Inc. These components are engineered for robust performance in industrial environments. The series typically includes variants with different voltage or capacitance ratings to suit various single-phase power distribution needs.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guide or datasheet for verified alternatives.
