Product Detailed Parameters
- Description：CMC 6MH 10A 2LN TH
- Series：RD
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：10A (Typ)
- DC Resistance (DCR) (Max)：24.25mOhm (Typ)
- Voltage Rating - DC：850V
- Voltage Rating - AC：600V
- Operating Temperature：-25°C ~ 110°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.969" L x 1.969" W (50.00mm x 50.00mm)
- Height (Max)：1.398" (35.50mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：6 mH @ 400 Hz
Download product information
Overview

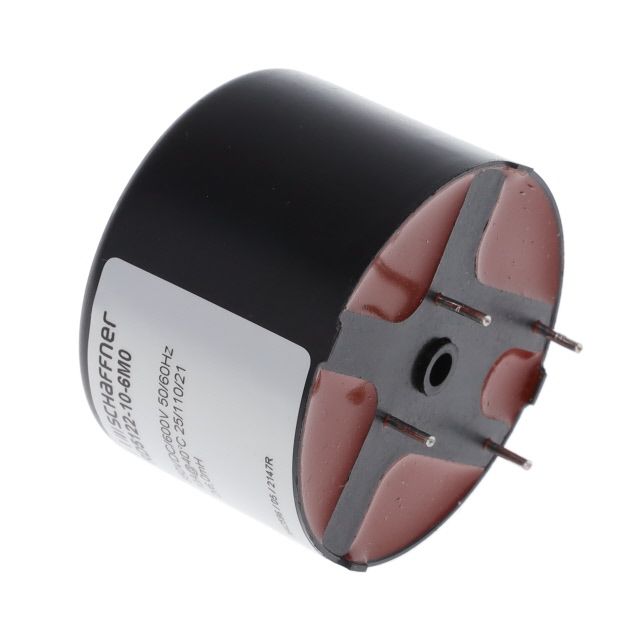

The Schaffner RD5122-10-6M0 is a current compensated common mode choke from the RD Series, designed for vertical PCB mounting via through-hole termination. It features a ferrite core and operates within a temperature range of -40°C to +100°C. Key electrical parameters include an inductance of 6 mH with tolerances of -30% to +50%, a maximum DC current rating of 10 A, and a typical DC resistance of 24.25 mOhms. The component measures 32 mm x 43 mm x 44 mm and is tested at 100 kHz.
Feature Summary
- Provides common mode noise suppression for two-wire circuits
- Utilizes a ferrite core for high-current compensation
- Supports vertical printed circuit board installation
Applications
- EMC/EMI filtering in medical devices
- Power supply input stages
- Industrial control systems
Procurement Notes
Verify the specific datasheet version for the RD5122-10-6M0 to confirm exact tolerance bands and thermal derating curves. Ensure the application voltage does not exceed the rated limits for the intended environment. Cross-reference pin dimensions with the target PCB footprint to guarantee mechanical compatibility during assembly.
Selection Notes
Select this component when a 6 mH inductance value is required for two-line applications with up to 10 A continuous current. Consider the physical dimensions of 32x43x44 mm for enclosure space planning. Verify that the operating temperature range of -40°C to +100°C meets the environmental requirements of the final system.
Part Context
This part belongs to the Schaffner RD Series, which specializes in high-current common mode chokes. These components are engineered for robust performance in demanding industrial and medical environments. The series offers various inductance and current ratings to suit different power line filtering needs while maintaining compact form factors.
Replacement Considerations
Check for direct substitutes within the RD Series or RT Series from TE Connectivity/Schaffner that match the 6 mH inductance and 10 A current rating. Ensure any replacement maintains the same through-hole vertical mounting style and similar physical envelope dimensions.
FAQ
What is the inductance tolerance for the RD5122-10-6M0?
The inductance tolerance is specified as -30% to +50%.
Is the RD5122-10-6M0 shielded?
No, the component is unshielded.
