Product Detailed Parameters
- Description：CMC 9.6MH 6A 2LN TH
- Series：RD
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：6A (Typ)
- DC Resistance (DCR) (Max)：52.55mOhm (Typ)
- Voltage Rating - DC：850V
- Voltage Rating - AC：600V
- Operating Temperature：-25°C ~ 110°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.969" L x 1.969" W (50.00mm x 50.00mm)
- Height (Max)：1.398" (35.50mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：9.6 mH @ 1 kHz
Download product information
Overview

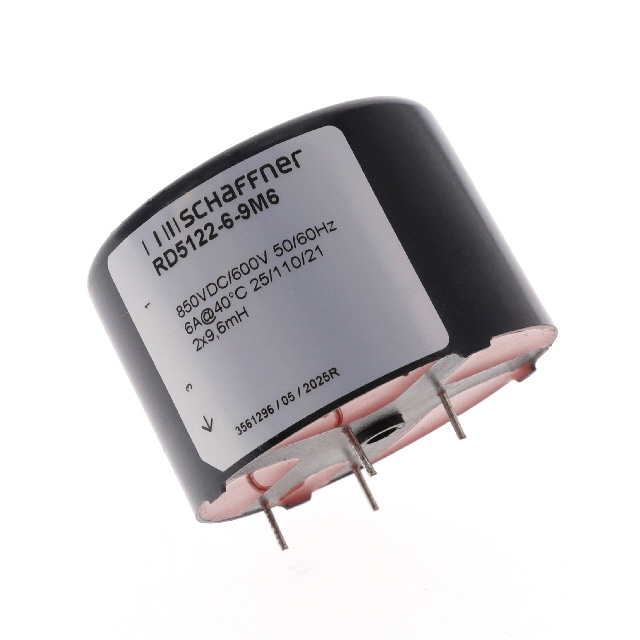

The Schaffner RD5122-6-9M6 is a through-hole common mode choke from the RD Series, designed for power line filtering and EMI suppression. It features an inductance of 9.6 mH per path at 1 kHz and supports a typical current rating of 6 A. The component has a typical DC resistance (DCR) of 52.55 mΩ. It utilizes a two-line configuration with radial leads for PCB mounting.
Feature Summary
- Provides effective electromagnetic interference (EMI) suppression for electronic equipment via common mode chokes.
- Designed specifically for power line filtering applications to maintain signal integrity.
- Utilizes a two-line configuration suitable for differential noise cancellation.
Applications
- Power line filtering in electronic equipment
- EMI suppression circuits
- General-purpose EMC filtering
Procurement Notes
Verify the specific manufacturer designation, as TE Connectivity acquired Schaffner. Confirm that the part number RD5122-6-9M6 corresponds to the required 9.6 mH inductance and 6 A current rating. Ensure compatibility with through-hole assembly processes and check for any updated RoHS compliance documentation from the current manufacturer.
Selection Notes
Select this component when a 9.6 mH inductance value is required for common mode noise reduction. The 6 A current rating makes it suitable for moderate power applications. Verify that the 52.55 mΩ DCR meets the efficiency requirements of the circuit design and that the physical dimensions fit the available PCB space.
Part Context
This component belongs to the RD Series of common mode chokes manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is characterized by its use in suppressing electromagnetic interference in power lines. The RD5122-6-9M6 variant specifically targets applications requiring 9.6 mH inductance with a 6 A current handling capability.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Cross-referencing should be performed carefully due to potential changes in specifications after the TE Connectivity acquisition.
