RD5132-10-3M0

Overview

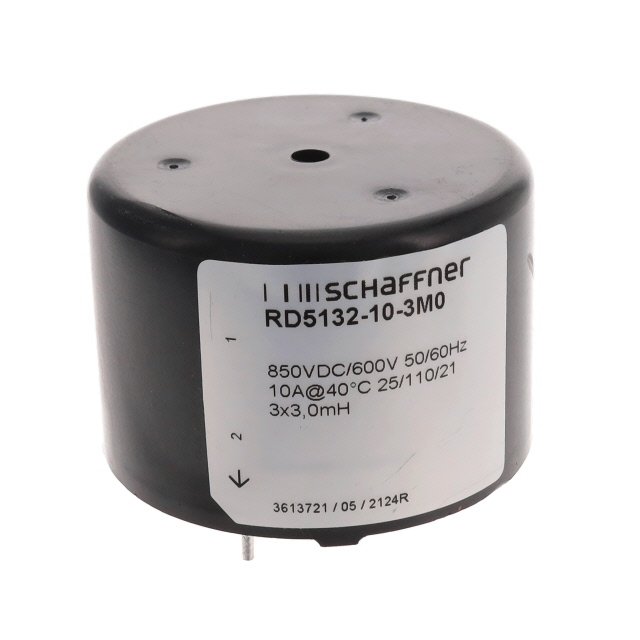

The RD5132-10-3M0 is a current-compensated common mode choke manufactured by Schaffner EMC Inc. It features a ferrite core and supports through-hole PCB mounting with three channels. The component provides an inductance of 3 mH and handles a maximum DC current of 10 A. Its physical dimensions are 51 mm x 51 mm x 33 mm, with a lead diameter of 1.5 mm. The device operates within a temperature range of -40°C to +100°C and has a maximum DC resistance of 15 mOhms.

Feature Summary

• Current-compensated design for efficient noise suppression
• Three-channel configuration for multi-wire applications
• Through-hole termination for secure PCB integration

Applications

• AC and DC filtering for midsize power range drives
• Automation and industrial LED lighting systems
• Communication devices and converters
• Electronic devices and EV charging stations
• Medical and laboratory equipment

Procurement Notes

Verify the specific datasheet version for the RD5132-10-3M0 to confirm RoHS compliance status and any recent packaging changes. Ensure that the procurement documentation matches the manufacturer's official part number exactly. Cross-reference technical specifications against the latest Schaffner EMC Inc. publications to validate performance parameters before finalizing orders.

Selection Notes

Select this component when a current-compensated common mode choke is required for high-current applications up to 10 A. The 3 mH inductance value is suitable for standard EMI/EMC filtering needs in industrial and medical environments. Consider the through-hole mounting style and physical footprint constraints during PCB layout design to ensure proper clearance and thermal management.

Part Context

This component belongs to the RD5132 series of common mode chokes from Schaffner EMC Inc. The series is designed for robust electromagnetic interference suppression in demanding electronic applications. The RD5132-10-3M0 variant specifically offers a balance of high current handling and moderate inductance, making it a versatile choice for various power electronics and communication systems requiring reliable noise filtering.

Replacement Considerations

Public confirmed substitute part numbers: RT8132-10-4M0.
