RD5132-16-1M0

Overview

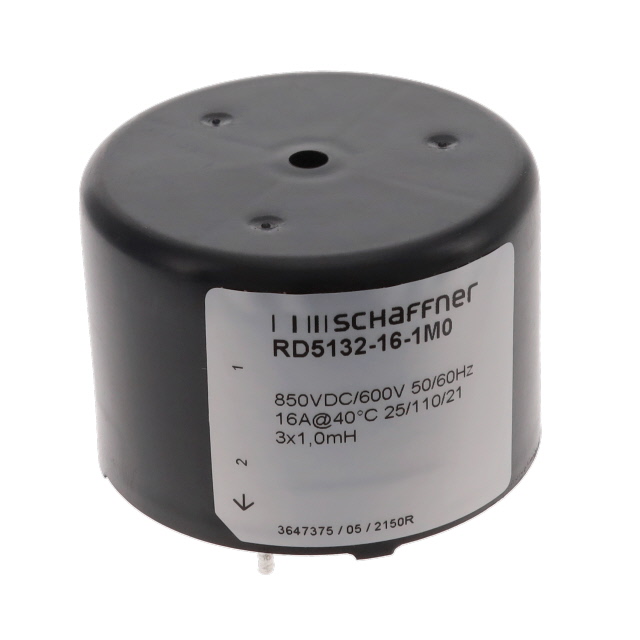

The Schaffner RD5132-16-1M0 is a three-phase common mode choke designed for through-hole PCB mounting. It features an inductance of 1 mH with a tolerance of -30% to +50%. The component supports a maximum DC current of 16 A and has a typical DC resistance of 6.9 mΩ. Rated for 850 VDC and 600 VAC at 50/60 Hz, it operates within a temperature range of -40°C to +100°C. The ferrite core unit measures 57 mm x 57 mm x 37 mm.

Feature Summary

• Three-phase current compensated design for effective noise suppression
• Through-hole termination for secure PCB integration
• Ferrite core construction for high-frequency attenuation

Applications

• CAT scanners
• Defibrillators
• Laboratory equipment
• X-ray equipment

Procurement Notes

Verify the specific manufacturer designation, as TE Connectivity and Schaffner branding may appear interchangeably on components and documentation. Confirm that the 1 mH inductance rating aligns with your circuit's filtering requirements. Ensure the 16 A current handling capacity meets the load specifications. Check that the physical footprint matches the target PCB layout constraints.

Selection Notes

Select this component when three-phase EMI suppression is required for medical or laboratory instrumentation. The 1 mH value provides specific attenuation characteristics suitable for these applications. Consider the 16 A current rating and 600 VAC voltage rating to ensure compatibility with the power supply architecture. Verify that the through-hole mounting style fits the assembly process.

Part Context

This component belongs to the RD series of EMC/EMI chokes manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is engineered for industrial and medical applications requiring robust common mode noise reduction. The RD5132 variant specifically addresses three-phase line filtering needs with high current capabilities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
