Product Detailed Parameters
- Description：CMC 5MH 6A 3LN TH
- Series：RD
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Power Line
- Number of Lines：3
- Current Rating (Max)：6A (Typ)
- DC Resistance (DCR) (Max)：38mOhm (Typ)
- Voltage Rating - DC：850V
- Voltage Rating - AC：600V
- Operating Temperature：-25°C ~ 110°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.969" L x 1.969" W (50.00mm x 50.00mm)
- Height (Max)：1.398" (35.50mm)
- Package / Case：-
- Inductance @ Frequency：5 mH @ 400 Hz
Download product information
Overview

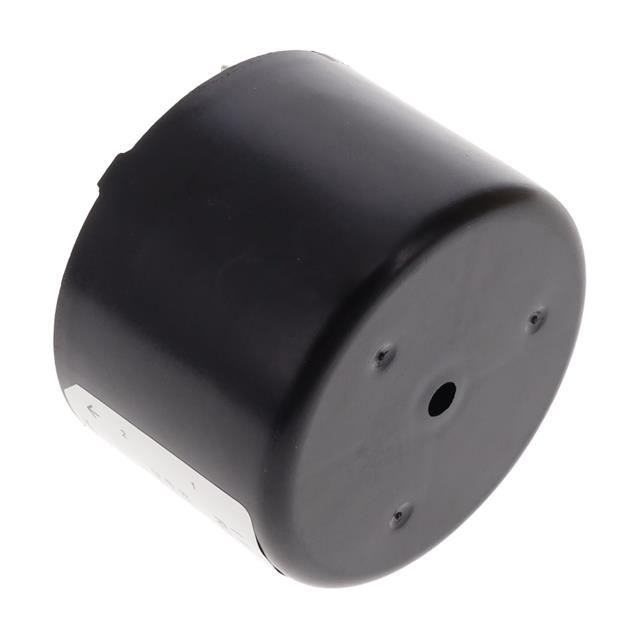

The RD5132-6-5M0 is a three-line common mode choke manufactured by Schaffner EMC Inc. It features a nominal inductance of 5 mH measured at 400 Hz and supports a typical current rating of 6 A. The component utilizes through-hole mounting with a current-compensated design. Typical DC resistance per path is specified as 38 mOhm. This filter is engineered for electromagnetic interference suppression in multi-phase power applications.
Feature Summary
- Three-line configuration for balanced noise attenuation across multiple phases
- Current-compensated core design to maintain performance under load variations
- Through-hole construction suitable for robust mechanical integration
Applications
- Industrial drive systems requiring multi-phase EMI filtering
- Medical equipment power inputs needing common mode noise reduction
- Test and measurement instrumentation power stages
Procurement Notes
Verify the specific inductance tolerance and thermal characteristics against the official Schaffner datasheet before finalizing the bill of materials. Confirm that the through-hole footprint matches the PCB layout requirements. Ensure the 6 A current rating aligns with the maximum operational load of the target circuit to prevent saturation or overheating during peak usage periods.
Selection Notes
Select this component when three-phase or multi-wire common mode noise suppression is required. The 5 mH inductance value provides effective attenuation for standard industrial frequencies. Consider the physical size and lead spacing constraints of the assembly process. Compare against single-phase alternatives if the application does not require multi-line compensation capabilities.
Part Context
This part belongs to the Schaffner common mode choke family designed for power line filtering. It complements other Schaffner components used in EMC compliance strategies. The product line focuses on providing reliable noise suppression for sensitive electronic equipment operating in electrically noisy environments.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative manufacturers only through direct electrical parameter comparison and mechanical fit analysis.
FAQ
What is the inductance specification at the rated frequency?
The inductance is 5 mH at 400 Hz.
How many lines does this common mode choke support?
It is designed for three-line applications.
