RD6127-16-3M0

Overview

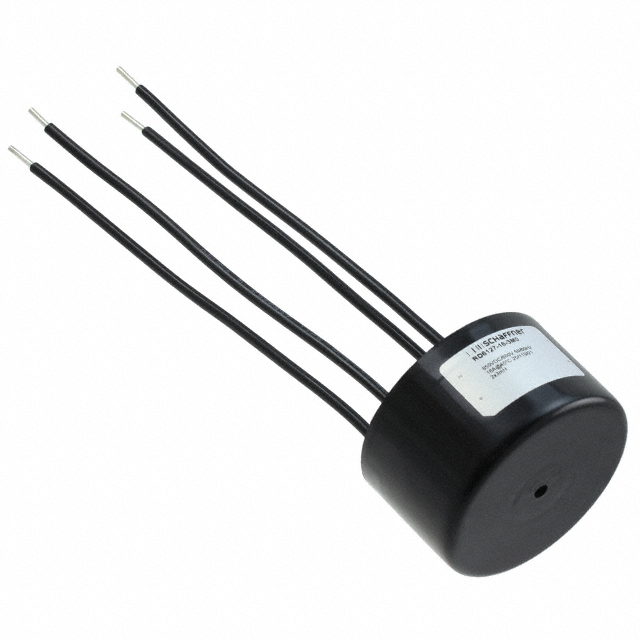

The Schaffner RD6127-16-3M0 is a radial lead common mode choke from the RD series, designed for phase-angle control circuits. It features an inductance of 3 mH at 1 kHz and supports a maximum DC current of 16 A. The component has a low DC resistance of 10.9 mOhm and operates within a voltage range up to 600 VAC. Physical dimensions include a through-hole mounting style with specific lead spacing. It is suitable for applications requiring EMI suppression in medical and laboratory equipment.

Feature Summary

• Provides effective electromagnetic interference suppression in two-line configurations
• Engineered specifically for phase-angle control circuit applications
• Features high current handling capability with low DC resistance

Applications

• CAT scanners
• Defibrillators
• Laboratory equipment
• X-ray equipment

Procurement Notes

Verify the manufacturer designation, as TE Connectivity acquired Schaffner EMC. Confirm the part number matches the specific RD series requirements for phase-angle control. Check for RoHS compliance status and ensure the 16A current rating aligns with the target circuit design before procurement.

Selection Notes

Select this component when phase-angle control compatibility is required. Ensure the 3 mH inductance meets the EMI filtering needs. Verify that the 16A current rating and 600VAC voltage limit are sufficient for the application environment. Consider the through-hole mounting constraints during PCB layout.

Part Context

This component belongs to the RD series of common mode chokes manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is characterized by its suitability for industrial and medical power line filtering, offering robust performance in compact through-hole packages for noise reduction.

Replacement Considerations

Public confirmed substitute part numbers were not identified in the provided documentation. Consult official TE Connectivity or Schaffner catalogs for direct replacements or cross-reference guides.
