RD6137-16-1M5

Overview

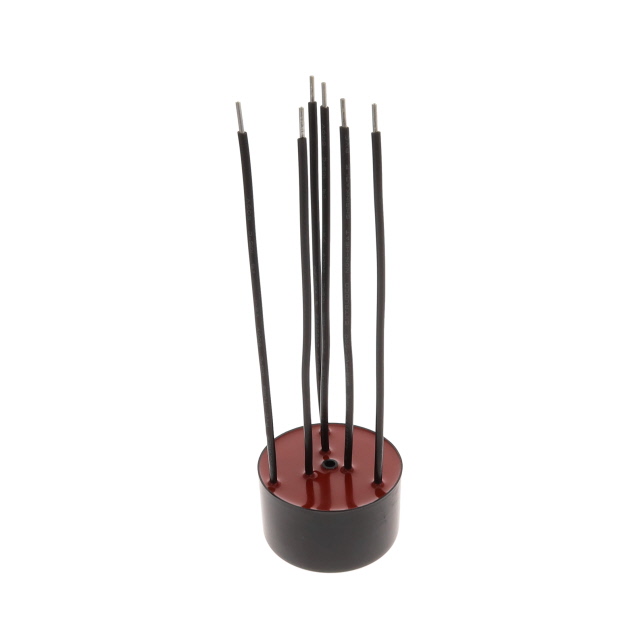

The Schaffner RD6137-16-1M5 is a three-channel current-compensated common mode filter choke from the RD series. It provides an inductance of 1.5 mH per path with a tolerance range of -30% to +50%. The component supports a maximum DC current of 16 A and features a typical DC resistance of 8.3 mOhms. Designed for operation between -25°C and +110°C, it utilizes ferrite core material and wire termination. The physical dimensions are 80 mm x 80 mm x 50 mm, and it is unshielded.

Feature Summary

• Three-phase current-compensated design for balanced load handling
• Ferrite core construction optimized for high-frequency noise suppression
• Robust thermal performance suitable for demanding industrial environments

Applications

• CAT scanners
• Defibrillators
• Laboratory equipment
• X-ray equipment

Procurement Notes

Verify the specific manufacturer designation, as TE Connectivity and Schaffner branding may appear interchangeably on documentation. Confirm that the wire termination style matches the target PCB or cable assembly requirements. Ensure the application environment remains within the specified -25°C to +110°C operating temperature range to maintain component integrity and performance standards.

Selection Notes

Select this component when three-phase power line filtering is required for medical or laboratory instrumentation. The 1.5 mH inductance value targets specific EMI frequencies while maintaining low impedance for high-current loads up to 16 A. Consider the unshielded nature and physical footprint when designing enclosure layouts for sensitive diagnostic equipment.

Part Context

This part belongs to the RD series of EMC/RFI chokes manufactured by Schaffner, now part of TE Connectivity. The series is engineered for robust electromagnetic interference suppression in critical applications. The RD6137-16-1M5 specifically addresses the needs of high-power medical devices requiring reliable noise filtration without compromising signal integrity or thermal stability.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
