Product Detailed Parameters
- Description：CMC 7.5MH 6A 3LN TH
- Series：RD
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Power Line
- Number of Lines：3
- Current Rating (Max)：6A (Typ)
- DC Resistance (DCR) (Max)：49mOhm (Typ)
- Voltage Rating - DC：850V
- Voltage Rating - AC：600V
- Operating Temperature：-25°C ~ 110°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.362" L x 2.362" W (60.00mm x 60.00mm)
- Height (Max)：1.398" (35.50mm)
- Package / Case：-
- Inductance @ Frequency：7.5 mH @ 400 Hz
Download product information
Overview

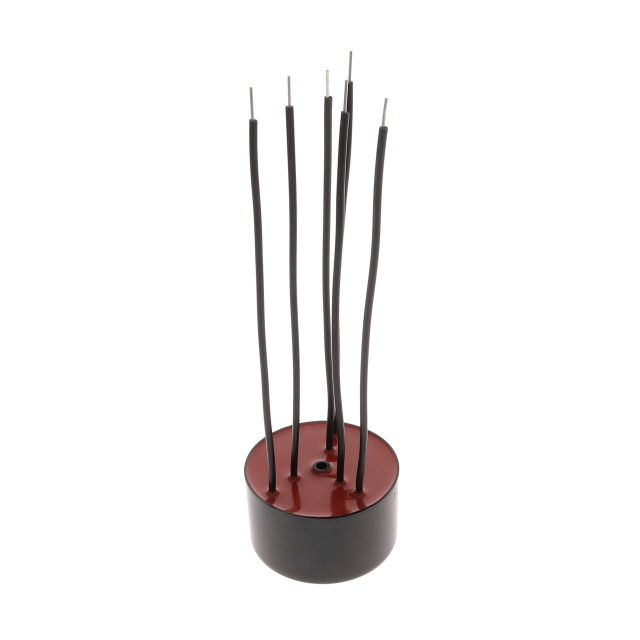

The RD6137-6-7M5 is a three-line common mode choke manufactured by TE Connectivity / Schaffner. It features a current compensated design with a ferrite core and wire termination. The component provides an inductance of 7.5 mH at 400 Hz, with a typical DC resistance of 49 mOhm. It supports a maximum DC current of 6 A and operates within a temperature range of -25 C to +110 C. The unit utilizes through-hole mounting and measures 35.50 mm in diameter.
Feature Summary
- Three-line configuration for comprehensive noise suppression
- Current compensated architecture for balanced performance
- Ferrite core construction for high-frequency attenuation
Applications
- Industrial power supply filtering
- Medical equipment EMI reduction
- Telecommunications infrastructure noise control
Procurement Notes
Verify the manufacturer designation as TE Connectivity / Schaffner when sourcing. Confirm RoHS compliance status through official datasheets or distributor declarations. Ensure the specific 7.5 mH inductance rating matches the circuit requirements. Check for any obsolete status or lifecycle changes directly from the manufacturer before finalizing procurement plans.
Selection Notes
Select this component for applications requiring three-line common mode filtering with a 6 A current rating. The 7.5 mH inductance at 400 Hz suits standard power line frequencies. Consider the through-hole package and physical dimensions for PCB layout constraints. Verify thermal management capabilities given the operating temperature limits and current handling specifications.
Part Context
This part belongs to the RD series of common mode chokes from Schaffner EMC Inc., now under TE Connectivity. The series focuses on providing effective electromagnetic interference suppression for various electronic systems. These components are designed to meet stringent EMC standards while maintaining compact form factors suitable for diverse industrial and commercial applications.
Replacement Considerations
Consult official TE Connectivity / Schaffner documentation for verified substitute part numbers. Cross-reference inductance values, current ratings, and physical dimensions to ensure compatibility. Do not assume interchangeability without validating electrical parameters against the original specification sheet.
