RD8127-25-5M0

Overview

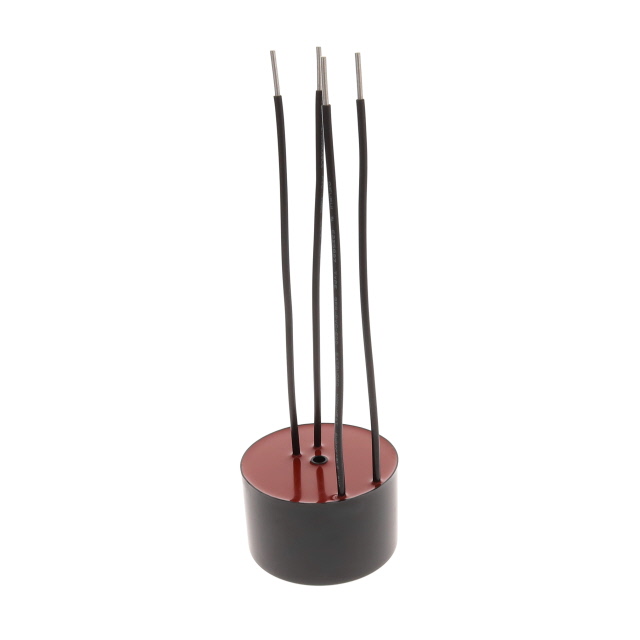

The RD8127-25-5M0 is a common mode choke manufactured by Schaffner EMC Inc. It features a nanocrystalline core and provides an inductance of 5 mH with a current rating of 25 A. Designed for through-hole PCB mounting, this unshielded component operates within a temperature range of -40°C to +125°C. The device utilizes wire termination and belongs to the RD-Series family.

Feature Summary

• Utilizes nanocrystalline core technology for high magnetic performance
• Designed for through-hole printed circuit board mounting
• Provides effective common mode noise suppression

Applications

• Power line filtering in industrial equipment
• Electromagnetic compatibility enhancement in electronic systems
• Noise suppression in AC/DC power supplies

Procurement Notes

Verify the specific manufacturer part number against official Schaffner documentation to ensure authenticity. Confirm that the nanocrystalline core specifications and current ratings align with your design requirements. Check for any recent product change notices or packaging updates directly from the supplier before finalizing procurement orders.

Selection Notes

Select this component when high current handling capability at 25 A is required alongside significant common mode inductance. The through-hole construction suits applications needing robust mechanical attachment. Ensure the operating environment stays within the specified temperature limits and that the unshielded design does not interfere with nearby sensitive components.

Part Context

This component is part of the RD-Series common mode chokes produced by Schaffner EMC Inc., a leader in electromagnetic compatibility solutions. The series focuses on providing reliable noise filtration for power lines using advanced core materials. These chokes are engineered to meet stringent EMC standards for various industrial and commercial electronic applications.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in available documentation. Verify compatibility carefully if considering alternative manufacturers or different series from the same provider.
