RD8147-16-3M0

Overview

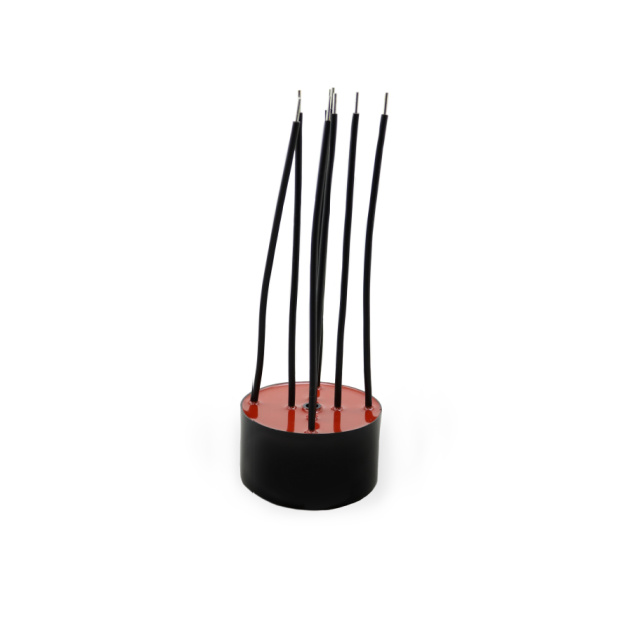

The Schaffner RD8147-16-3M0 is a four-line common mode choke designed for power line filtering. It features an inductance of 3 mH at 400 Hz with a tolerance range of -30% to +50%. The component supports a maximum DC current of 16 A and has a typical DC resistance of 9.25 mOhms. It operates within a temperature range of -25°C to +110°C and utilizes wire termination for PCB mounting.

Feature Summary

• Provides attenuation for common-mode or asymmetric interference signals when connected in series with the phase
• Designed specifically for use in phase-angle control circuits

Applications

• Phase-angle control circuits
• Power line EMI filtering
• Common-mode noise suppression in industrial electronics

Procurement Notes

Verify the specific part number suffix against official Schaffner documentation to ensure correct inductance and current ratings. Confirm that the 3 mH value corresponds to the 400 Hz test frequency specified in the datasheet. Ensure compatibility with the required 16 A current handling and 9.25 mOhm resistance limits for your circuit design before procurement.

Selection Notes

Select this component for applications requiring robust common-mode noise reduction in phase-controlled environments. The 4-line configuration allows for comprehensive filtering across multiple phases. Consider the thermal operating range up to 110°C and the physical mounting requirements for through-hole installation when integrating into the system layout.

Part Context

This component belongs to the RD series of chokes manufactured by Schaffner EMC Inc., now part of TE Connectivity. The RD series is engineered for high-current power line applications, offering reliable electromagnetic compatibility performance. These chokes are widely used in industrial settings where stable operation under varying load conditions is critical.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult official Schaffner documentation for equivalent models with similar electrical characteristics if replacement is necessary.
