RD8147-36-0M8

Overview

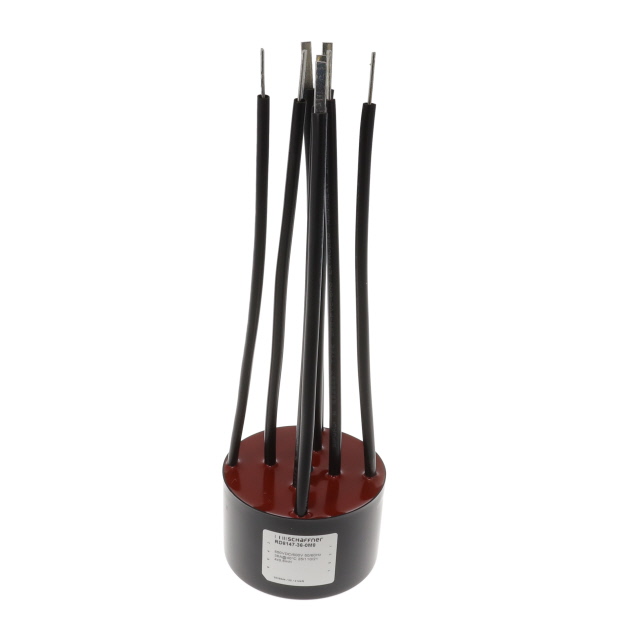

The RD8147-36-0M8 is a four-line common mode choke manufactured by Schaffner EMC Inc. It features an inductance of 800 µH measured at 1 kHz and supports a typical current rating of 36 A. The component has a typical DC resistance (DCR) of 3 mOhm. Designed for through-hole mounting, it utilizes a power line filter topology to attenuate common-mode interference signals.

Feature Summary

• Attenuates common-mode or asymmetric interference signals when connected in series with the phase
• Provides high current handling capability suitable for demanding power applications
• Constructed for robust through-hole installation

Applications

• Power line filtering for electronic equipment
• EMI suppression in industrial systems
• Common mode noise reduction in AC/DC power inputs

Procurement Notes

Verify the specific part number RD8147-36-0M8 against official Schaffner documentation to confirm electrical ratings and mechanical dimensions. Ensure compatibility with your system's current requirements and mounting constraints before procurement.

Selection Notes

Select this component based on its 800 µH inductance and 36 A current rating. Confirm that the through-hole package fits your PCB layout and that the attenuation characteristics meet your EMI standards.

Part Context

This component belongs to the RD series of common mode chokes from Schaffner EMC Inc., which are designed for power line applications. The series offers various inductance and current options to address different electromagnetic interference challenges in power electronics.

Replacement Considerations

Consult official Schaffner substitution guides for verified alternatives. Do not assume cross-compatibility with other manufacturers' parts without verifying inductance, current, and physical dimensions.
