Product Detailed Parameters
- Description：LINE FILTER 48VDC 50A CHASS MNT
- Series：RDEN
- Mfr：TDK-Lambda
- Package：Bulk
- Filter Type：DC
- Configuration：Single Stage
- Voltage - Rated DC：48V
- Voltage - Rated AC：-
- Current：50 A
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-30°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

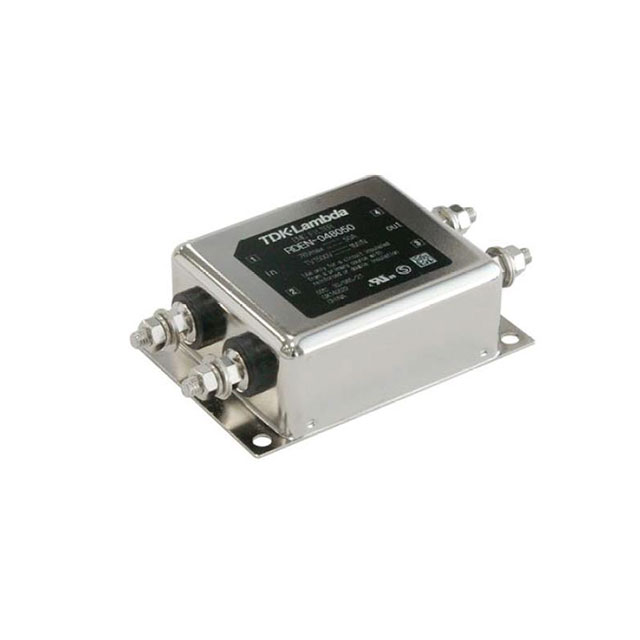

The RDEN-048050 is a DC power line filter manufactured by TDK-Lambda, designed for electromagnetic compatibility (EMC) compliance in electronic systems. It operates with a rated voltage of 48VDC and supports a maximum current of 50A. The unit utilizes stud terminations for secure mounting and connection. This component functions as a single-stage filter to reduce electrical noise and interference within DC power distribution networks.
Feature Summary
- Provides EMC/EMI filtering for DC power lines
- Utilizes stud termination connections for robust installation
Applications
- Base installation in industrial equipment
- DC power distribution systems requiring low interference
- Electronic systems needing EMC compliance
Procurement Notes
Verify the specific datasheet version and technical specifications directly from TDK-Lambda official documentation before procurement. Confirm that the 48VDC rating and 50A current capacity align with your system requirements. Ensure the stud termination type matches your mechanical assembly constraints. Cross-reference part numbers to avoid confusion with similar series components.
Selection Notes
Select this component when a dedicated DC line filter is required for 48V applications up to 50A. Consider the stud termination style if through-hole or bolt-down mounting is preferred over PCB surface mount options. Evaluate space constraints against the physical dimensions provided in the official datasheet. Ensure the filter's attenuation characteristics meet the specific EMI standards applicable to your target market.
Part Context
This component belongs to the TDK-Lambda power line filter module series, which offers various solutions for AC and DC noise suppression. The RDEN-048050 specifically addresses high-current DC applications, complementing the manufacturer's broader portfolio of EMI filters including AC input filters and signal line suppressors.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided source material. Consult TDK-Lambda technical support for potential alternatives if this specific model is discontinued or unavailable.
