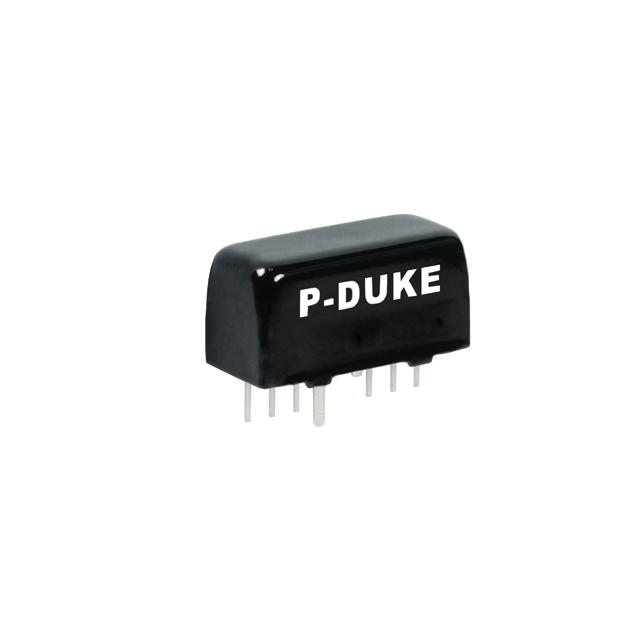

RDL03-110S05W

RDL03-110S05W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 5V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RDL03-110S05W

• Description：DC DC CONVERTER 5V 3W
• Series：RDL03W (3W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：43V
• Voltage - Input (Max)：160V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：600mA
• Power (Watts)：3 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：12-SIP Module, 10 Leads
• Size / Dimension：0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus
• Standard Number：62368-1

DC DC Converters datasheet and documents for RDL03-110S05W
