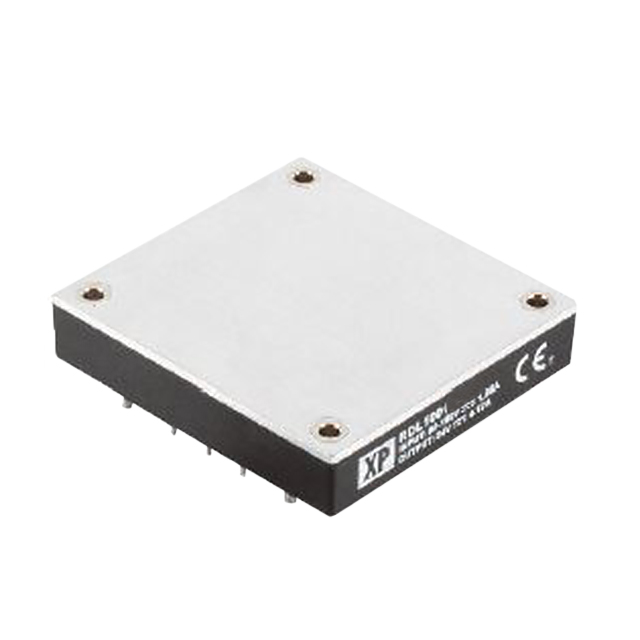

RDL100110S48

RDL100110S48 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER 48V 100W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RDL100110S48

• Description：DC DC CONVERTER 48V 100W
• Series：RDL100 (100W)
• Mfr：XP Power
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：66V
• Voltage - Input (Max)：160V
• Voltage - Output 1：48V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2.08A
• Power (Watts)：100 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 100°C
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：Half Brick
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for RDL100110S48
